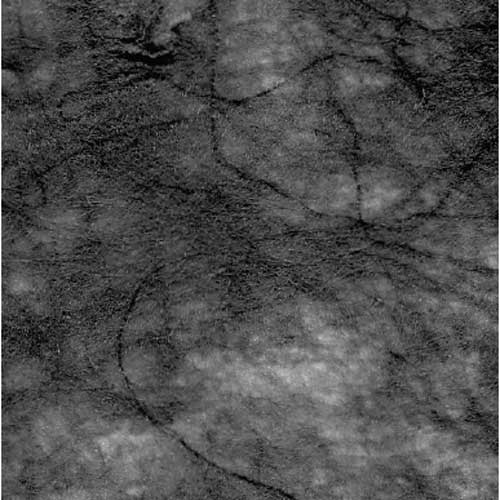

SRW Drainfield Fabric black roll 6' x 300'

Drainfield Fabric - 6' x 300' - 2 oz

SKU FSB206300
$243.34 - $243.34
$243.34
$243.34 - $243.34
$243.34
Free Shipping

Drainfield Fabric · 2 oz Spunbond · 6′ × 300′

2 oz drainfield fabric on a 6′ × 300′ roll covering 1,800 square feet. A 6-foot width in the lighter fabric, suiting trenches, pipe runs and garden work. Commercial grade spunbond polypropylene geotextile with high water flow and excellent permittivity — easy to cut, and puncture and tear resistant.

Weight
2 ozGeneral landscaping & drains
Roll Size
6′ × 300′1,800 sq ft per roll
Part Number
FSB206300Spunbond geotextile
Water Flow
HighExcellent permittivity
  • High water flow & permittivity
  • Puncture & tear resistant
  • Easy to cut, easy to use
  • Weed control as well as drainage
  • Free shipping on all orders

Free Shipping - Please submit a Quote Request for quantities larger than listed below.

Quantity Price Per Unit
(Free Shipping)
1 $243.34
2+ $231.17
3+ $219.01
10+ $206.84

01 Spunbond polypropylene · 2 oz & 3 oz

Drainfield Fabric

Drainfield fabric is a commercial grade spunbond polypropylene geotextile with high puncture resistance. Spunbond geotextiles have high water flow, which creates excellent permittivity — and that is exactly what a drainfield needs: water moving freely through while soil and fines stay out.

It is a favorite among professional landscapers for its strength and versatility. The fabric is easy to cut, easy to work with, and tear resistant, which matters on a job where you are trimming around pipe, stone and wall faces rather than laying clean rectangles.

2weights · 2 oz and 3 oz

Five rolls across the two weights, in 6′, 8′ and 12′ widths on 300-foot rolls.

02 Why spunbond

High Flow Is The Whole Point

A drainfield fabric that restricts flow defeats the drain it was installed to protect. Spunbond construction gives high water flow and excellent permittivity while still holding back the fines that would otherwise clog the stone — both halves of the job, at once.

03 What you get

Benefits

  • High water flow and excellent permittivity
  • Easy to cut, easy to use
  • Puncture and tear resistant
  • Weed control
  • Commercial grade spunbond polypropylene geotextile
  • High puncture resistance for work around stone and pipe
  • Strong and versatile — a professional landscaper's favorite
  • Two weights and five roll sizes, so the fabric matches the job
Filtration is a two-part job. Stop the soil but also stop the water and you build pressure where you wanted drainage. Pass the water but let fines through and the stone clogs. A spunbond geotextile is specified because it does both halves at once.

04 Choosing

2 oz or 3 oz?

Both weights are the same spunbond construction and install identically. The heavier fabric gives more strength and more puncture resistance, and it costs more — so there is no sense over-specifying a light job.

WeightWidthsSpecify it when
2 oz6′ and 12′General landscaping, gardens and planters, standard drainfield and french drain work in reasonable ground
3 oz6′, 8′ and 12′Coarser or more angular stone, heavier backfill, retaining wall work and anywhere puncture risk is higher
Describe the stone, not the project. How angular and how coarse the drainage aggregate is decides the weight far more than the size of the job. Call (800) 524-4161 and tell us what is going on top of the fabric.

05 Roll sizes

Available Rolls

Every roll is 300 feet long. Match the width to what you are lining — narrow rolls for trenches and pipe runs, wider rolls for wall faces and large separation layers.

2 oz · 6′1,800 sq ft 2 oz · 12′3,600 sq ft 3 oz · 6′1,800 sq ft 3 oz · 8′2,400 sq ft 3 oz · 12′3,600 sq ft
Part numberWeightRoll sizeSq ft
FSB2063002 oz6′ × 300′1,800
FSB2123002 oz12′ × 300′3,600
FSB3063003 oz6′ × 300′1,800
FSB3083003 oz8′ × 300′2,400
FSB3123003 oz12′ × 300′3,600

06 Where it goes

Applications

French drains & drainfields Behind retaining walls Gardens & planters General landscaping Wrapping drainage pipe Trench drains Drainage stone separation Weed control under stone
The same fabric covers drainage and weed control because both depend on the same property — letting water through while holding solids back. What changes is which side of it you care about.

07 Installation

Laying Drainfield Fabric

Grade the excavation and clear anything sharp enough to puncture the fabric, then roll it out and overlap adjacent runs rather than butting them. A separation layer only works where it is continuous.

In a trench or french drain: line the excavation, place the drainage stone, then fold the fabric back over the top so the aggregate is fully wrapped and fines cannot reach the pipe perforations from above.

Behind a wall: line the excavated face and the base before the drainage stone goes in, and carry the fabric up high enough that backfill soil cannot spill over the top edge into the stone.

The top edge is where installations fail. If the fabric stops below the level of the backfill, soil washes straight over the top into the drainage stone and the fabric below it makes no difference at all. Carry it up and fold it over.

08 You will also need

6″ Landscape Staples

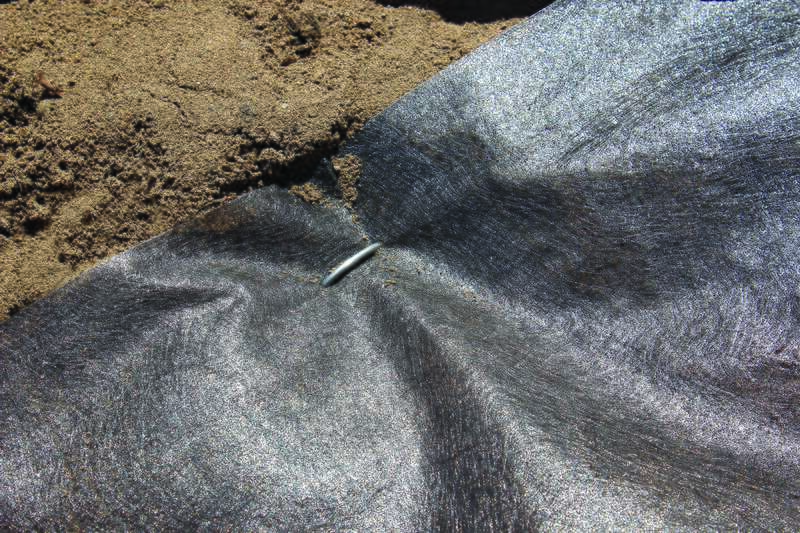

Fabric that is not held in contact with the ground does not do its job. Pin the edges, every seam, and anywhere the fabric lifts — especially before aggregate goes on, when a gust or a boot can shift a whole run out of position.

6″ landscape staples are the standard pin for this fabric, and they are sold separately — worth adding to the order rather than discovering the gap on install day.

View 6″ Landscape Staples

09 Documentation

Specification Sheets

Drainfield fabric 2 oz specification sheetPDF Drainfield fabric 3 oz specification sheetPDF

10 Buying from us

Why Buy Drainfield Fabric From Landscape Discount

Commercial grade only

Professional-grade geotextile, not a garden-centre weed mat. We never substitute another fabric or weight without the explicit consent of the customer.

Both weights, five rolls

2 oz and 3 oz in 6′, 8′ and 12′ widths, so the fabric matches the job rather than matching what we happen to hold.

We answer the phone

When you call you quickly reach a helpful, live person happy to answer your product and order questions. (M-F 5:00 am - 3:00 pm Pacific Time)

11 Common questions

Drainfield Fabric FAQs

What does drainfield fabric do?
Two things at once. It lets water flow freely through, and it holds back the soil and fines that would otherwise migrate into the drainage stone and clog it. Spunbond construction is specified because it delivers high water flow and excellent permittivity while still filtering.
2 oz or 3 oz?
2 oz for general landscaping, gardens and planters, and standard drainfield or french drain work in reasonable ground. 3 oz where the stone is coarser or more angular, the backfill is heavier, or puncture risk is higher — including retaining wall work.
How much do I need?
Every roll is 300 feet long: 1,800 sq ft for a 6′ width, 2,400 for an 8′, and 3,600 for a 12′. Work out the area you are lining and allow extra for overlaps, which are not optional on a filter layer.
Do I overlap or butt the seams?
Always overlap. A separation layer only works where it is continuous, and a butted joint that opens under load is a direct path for fines into the drainage stone.
How do I wrap a french drain?
Line the excavation, place the drainage stone, then fold the fabric back over the top so the aggregate is fully wrapped. That way water enters through the fabric from every direction and fines cannot reach the pipe perforations from above.
What is the most common installation mistake?
Stopping the fabric below the level of the backfill behind a wall. Soil then washes over the top edge into the drainage stone, and the fabric below makes no difference at all.
How do I secure it?
Pin the edges, every seam and anywhere the fabric lifts. 6″ landscape staples are the standard pin for this fabric and are sold separately.
Can I use it for weed control?
Yes, weed control is one of its listed uses and it works well beneath stone. For an exposed planting bed that will be walked on and planted through, a woven weed barrier is the more suitable tool.
Can I drive on it before covering it?
Avoid it. Place fill from one side and work forward over material already down. Driving or turning on bare fabric risks puncturing it and dragging it out of position.
