Typar GeoCell GS · GS-220/200 · Code 124138

A 20′ × 10′ panel of Typar GeoCell GS — the heavy vehicle load support configuration of this geocell cellular confinement system. Its 8.6″ cells at 8″ deep form the deepest confined layer in the GS range, transferring downward forces laterally to reduce the load reaching weak subgrade. Geotextile cell walls pass water, air and nutrients.

Panel Size: 20′ × 10′About 200 sq ft
Cell Size: 8.6″ dia.8″ deep
Built For: Heavy vehiclesLoad support
Material: PE / PPNon-woven geotextile

Permeable geotextile cell walls
Ships flat, expands on site
Fill with native soil or aggregate
Vegetates through the cell walls
Free shipping on all orders

Fixing pins: panels are secured with Typar Steel J-Pins, 100 per pack — about 10 pins per panel on flat ground. Typar Steel J-Pins must be ordered with an accompanying Typar geocell product and cannot ship alone.

Free Shipping - Please submit a Quote Request for quantities larger than listed below.

Quantity	Price Per Unit (Free Shipping)
1	$1,216.49
2+	$1,155.67
3+	$1,094.84
10+	$1,034.02

Typar GeoCell GS panel expanded into its honeycomb cellular confinement formation — A GeoCell GS panel expanded into its honeycomb formation. Click to enlarge.

01 Typar GeoCell GS

Geocell Erosion Control And Load Support

Typar GeoCell GS is a three-dimensional cellular confinement system for geocell erosion control and load support, built from Typar geotextile rather than solid plastic sheet. Panels ship flat in compacted form and expand on site into a honeycomb of cells, which are then filled with soil, aggregate or topsoil and vegetated.

Because the cell walls are geotextile, they are permeable to water, air and nutrients — so the confined fill drains and roots can grow through, which improves both stability and vegetative performance compared with an impermeable cell. The material is lightweight and flexible, conforming to surface variations instead of bridging them, and it resists impact damage during install. A wide range of infill works, including native soils and recycled aggregates, which keeps haul-off and material costs down.

1:1slope protection — up to 45 degrees

Variable cell depths and diameters give cost-effective options from gentle embankments up to 45° faces.

02 Why it works

Confinement Instead Of Mass

On a slope, the cellular structure interrupts the flow paths that erode a face, holding fill in discrete cells so it cannot sheet away under hydraulic or mechanical stress. On flat ground the same geometry does something different: the cells transfer downward forces laterally, spreading a wheel load across a much wider footprint and reducing the stress reaching weak subgrade. That is what allows a thinner constructed profile over poor soils — less excavation, less imported aggregate, lower cost.

03 Choose a model

GeoCell GS Model Range

Two numbers name each model: cell diameter in millimeters, then cell depth. GS-250/150 is a 250 mm (10″) diameter cell, 150 mm (6″) deep. Smaller cells hold steeper faces; deeper cells carry heavier loads.

Model	Panel size	Cell depth / dia.	Max slope	Application
GS-250/100	16.4′ × 23′	4″ / 10″	1:1 (45°)	Pedestrian and light vehicle load support, slope protection
GS-250/150	16.4′ × 23′	6″ / 10″	1:1 (45°)	Light vehicle load support, slope protection
GS-350/100	16.4′ × 23′	4″ / 13.8″	1:2	Slope protection
GS-350/150	16.4′ × 23′	6″ / 13.8″	1:2	Slope protection
GS-220/200	20′ × 10′	8″ / 8.6″	—	Heavy vehicle load support

Not seeing your spec? DT and DC series geocell is also available. Call (800) 524-4161 for information and pricing.

04 Slope protection

GeoCell GS For Erosion Control

The cellular structure improves resistance to erosive forces on steep or unstable slopes, and on faces exposed to severe hydraulic or mechanical stress. Variable cell depths and diameters make protection up to 1:1 (45°) practical without a structural wall.

Landfill caps and side slopes
Mining embankments and haul road batters
Highway cut and fill slopes
General embankments
Bridge abutments

05 Load support

GeoCell GS For Load Support

Filled cells transfer downward forces laterally, reducing the load reaching underlying soils. That makes the system a straightforward answer to soft or variable subgrade — and it also protects soil and roots from compaction where a surface has to cross a root zone.

Base course reduction
Improved access over poor soils
Increased pavement longevity
Highways and site access roads

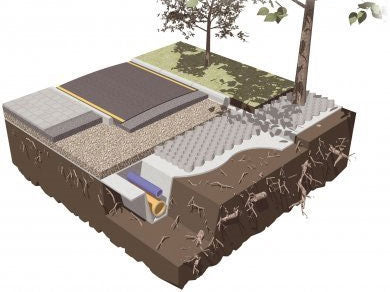

Tree root protection
Light, heavy and industrial vehicle access

06 Product data

Shared Specifications

Brand	Typar
System	GeoCell GS cellular confinement
Material	Non-woven polyethylene / polypropylene bicomponent fiber geotextile
Color	Dark gray
Cell walls	Permeable to water, air and nutrients
Shipped as	Compacted flat panels, expanded on site
Panel sizes	16.4′ × 23′ · 20′ × 10′ (GS-220/200)
Cell depths	4″, 6″, 8″
Cell diameters	8.6″, 10″, 13.8″
Infill	Native soils, aggregates, recycled aggregates, topsoil
Shipping	Free on every order

07 Where it goes

Where Geocell Erosion Control Is Used

Anywhere fill has to stay put on a grade, or a load has to cross ground that will not carry it.

Slope erosion control Landfill caps Mining sites Highway embankments Bridge abutments Channel and swale linings Access roads over soft soil Base course reduction Tree root protection Construction site access Parking and laydown areas Vegetated retaining faces

Lightweight and flexible — conforms to surface variations, easier to place than rigid panels.
Uses the fill you have — native soils and recycled aggregates cut waste and cost.
Vegetates well because the geotextile walls pass water, air and nutrients.

08 Installation

Five Steps To An Installed Panel

Prepare the surface. Grade and clear the face or subgrade. On a slope, form an anchor trench at the crest so the top of the panel can be keyed in.

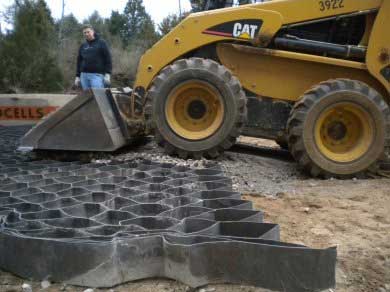

Expand the panel. Panels arrive compacted and open out into the honeycomb formation to the shape and dimension you need on site.
Pin it in place. Drive steel J-pins through the cells to hold the expanded panel against the surface before filling — this is what stops it walking downslope as fill goes in.
Connect adjacent panels. Butt and join panels to cover the full area, keeping cells aligned so the fill sits level.

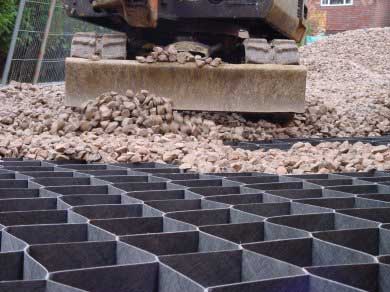

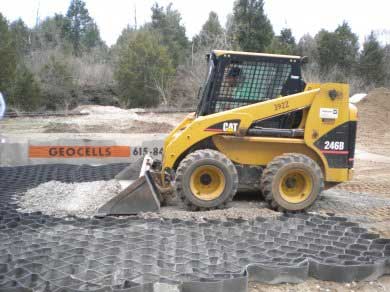

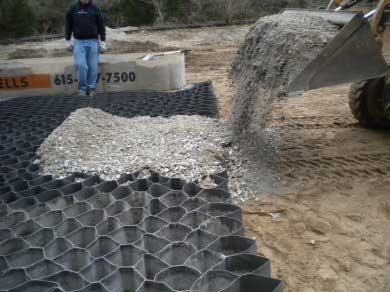

Fill the cells. Place infill from the top of a slope working down, slightly overfilling so the surface settles flush. Vegetate with topsoil and seed where a green face is wanted.

Pin quantities matter more on a slope than anywhere else. A slope application takes roughly 125 pins per panel; a flat load-support application needs about 10 per panel. J-pins come 100 to a pack, so a single slope panel is more than one pack on its own.

Typar steel J-pins used to secure geocell panels to the ground — Steel J-Pins — 100 per pack, 4″ × 22″.

Add Typar Steel J-Pins

09 Manufacturer resources

GeoCell Technical Documentation

Data sheets, installation guidance, the slope stabilization and load support design and application notes, and LEED credit information are published by Typar Geosynthetics.

Typar ground reinforcement — GeoCell product informationVisit
Typar downloads library — data sheets, guides, case studiesVisit

10 Models and accessories

Choose Your Panel

GS-250/100 — 4″ deep

10″ cells, 4″ deep. Slopes to 1:1 plus pedestrian and light vehicle load support. 16.4′ × 23′ panel.

View GS-250/100

GS-250/150 — 6″ deep

10″ cells, 6″ deep. Slopes to 1:1 with more capacity for light vehicle loads. 16.4′ × 23′ panel.

View GS-250/150

GS-350/100 — 4″ deep

13.8″ cells, 4″ deep. Slope protection to 1:2, with fewer cells to fill per square foot.

View GS-350/100

GS-350/150 — 6″ deep

13.8″ cells, 6″ deep. Slope protection to 1:2 with a deeper confined layer.

View GS-350/150

GS-220/200 — 8″ deep

8.6″ cells, 8″ deep — the heavy vehicle load support panel. 20′ × 10′.

View GS-220/200

Steel J-Pins

100 pins per pack. Required to secure panels — add these to your geocell order.

View J-Pins

Looking at other geocell options? Geocell ground grid pavers are also available in 3″, 4″, 6″ and 8″ depths — a rigid HDPE alternative for gravel fill rather than vegetated soil. View all geocell gravel grids.

Reinforcing rather than confining? For tensile reinforcement between soil layers see our geogrid selection, or the retaining wall geogrid range for segmental wall builds.

11 Free shipping, every order

Shipping And Volume Orders

Free shipping on every order at Landscape Discount — every geocell panel ships free.

Is your order total more than $15,000? Call (800) 524-4161 or submit a product quote request and we will put together written volume pricing for your project.

12 Buying from us

Why Buy Typar GeoCell From Landscape Discount

Genuine Typar GeoCell GS

The authentic product, manufactured to the published specification — so it matches a spec sheet or an existing installation exactly when you re-order.

The whole range, one order

All five GS panel configurations plus the steel J-pins, so slope and load support jobs ship complete from a single order. DT and DC series available on request.

Volume pricing on larger jobs

Order totals over $15,000 qualify for volume pricing — call or submit a quote request for written pricing.

We answer the phone

When you call you quickly reach a helpful, live person happy to answer your product and order questions. (M-F 5:00 am - 3:00 pm Pacific Time)

13 Common questions

Geocell FAQs

What do the model numbers mean?

Cell diameter in millimeters, then cell depth. GS-250/150 is a 250 mm (10″) diameter cell, 150 mm (6″) deep. GS-350/100 is 350 mm (13.8″) diameter, 100 mm (4″) deep.

Which model do I need for my slope?

The GS-250 series is rated to 1:1 (45°) and the GS-350 series to 1:2 — smaller cells hold a steeper face because each cell confines a smaller mass of fill. Depth follows the confined layer you want: 4″ for erosion control on a face, 6″ where there is also traffic or deeper fill. Confirm the design with your engineer for anything structural.

How much area does a panel cover?

The GS-250 and GS-350 panels are 16.4′ × 23′, about 377 square feet each. GS-220/200 is 20′ × 10′, about 200 square feet.

How many J-pins do I need?

Roughly 125 pins per panel for a slope application and about 10 per panel for a flat load support application. Pins come 100 to a pack, so a single slope panel takes more than one pack. Note that Typar Steel J-Pins must be ordered with an accompanying Typar geocell product and cannot ship alone.

What can I fill the cells with?

A wide range of infill works, including native soils, aggregates and recycled aggregates — which is often the biggest cost saving on the job, since it reduces both haul-off and imported material. Topsoil and seed give a vegetated face.

How is this different from a plastic geocell?

The cell walls are non-woven geotextile rather than solid plastic sheet, so they pass water, air and nutrients. Confined fill drains and roots can grow through the walls, which improves both stability and vegetative performance. The material is also lightweight and flexible, conforming to surface variations rather than bridging them.

Can it reduce my base course depth?

That is one of its main uses. Because the filled cells transfer downward forces laterally and reduce the stress reaching the subgrade, a confined section can achieve the same performance as a thicker unconfined base — less excavation and less imported aggregate. Have the section designed for your subgrade and traffic.

Do you carry other geocell series?

Yes — DT and DC series geocell is available alongside the GS panels listed here. Call (800) 524-4161 for information and pricing.
