Pond Underlayment Fabric Nonwoven SRW

Pond Underlayment Fabric - Heavy-Duty - Non Woven - 6' x 100'

SKU EC806100
$507.68 - $507.68
$507.68
$507.68 - $507.68
$507.68
Free Shipping

Pond Underlayment · 8 oz Heavy-Duty Non-Woven · 6′ × 100′

Pond underlayment fabric on a 6′ × 100′ roll covering 600 square feet. Sized for a garden pond or water feature — enough to line the excavation and run up the sides. Heavy-duty 8 oz needle-punched polypropylene that goes in beneath the liner, giving dependable protection against punctures to rubber and PVC liners in pond and waterfall applications.

Roll Size
6′ × 100′600 sq ft per roll
Part Number
FEC806100Non-woven geotextile
Weight
8 ozHeavy-duty, needle-punched
Resistance
Rot & mildewNon-biodegradable
  • Goes beneath the pond liner
  • Protects rubber & PVC liners
  • High strength, dimensionally stable
  • Rot & mildew resistant
  • Free shipping on all orders

Free Shipping - Please submit a Quote Request for quantities larger than listed below.

Quantity Price Per Unit
(Free Shipping)
1 $507.68
2+ $482.30
3+ $456.91
10+ $431.53

01 Heavy-duty non-woven · 8 oz

Pond Underlayment Fabric

Pond underlayment fabric provides dependable protection against punctures to a rubber or PVC liner in pond and waterfall applications. It goes in beneath the liner, so the liner sits on fabric rather than on the rock, gravel and ridges that would otherwise be pressed into it by the weight of the water.

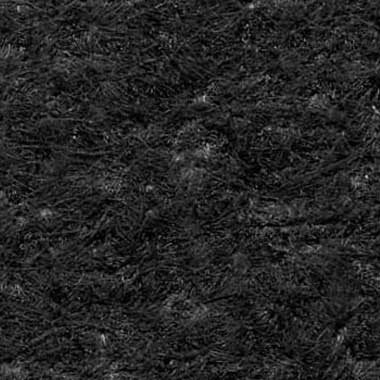

This is a needle-punched polypropylene fabric — a non-biodegradable geotextile produced by joining 100% polypropylene staple fibers in a random network to form a high-strength, dimensionally-stable fabric. At 8 oz it is the heavy-duty weight, and it is rot and mildew resistant, which is what allows it to be buried under a pond and left alone.

8ounce heavy-duty non-woven

A high-strength, dimensionally-stable fabric that holds its shape rather than stretching thin over a hard point.

02 What the liner is up against

The Water Does The Damage

A liner does not fail because someone stepped on it. It fails because the weight of the water presses it onto whatever is underneath, and that load concentrates on every stone and ridge in the excavation. Underlayment removes those points, and the repair it avoids means draining the pond and lifting the liner.

03 What you get

Benefits

  • Dependable puncture protection for rubber and PVC liners
  • Allows high water flow
  • Soil separation for added stability
  • High strength and dimensionally stable
  • Prevents soil erosion
  • Rot and mildew resistant
  • Non-biodegradable — 100% polypropylene staple fibers, needle-punched
  • Heavy-duty 8 oz weight
Rot and mildew resistance is not a minor detail here. This fabric sits permanently between a body of water and wet ground. Anything that breaks down in those conditions — cardboard, carpet padding, untreated matting — leaves the liner sitting directly on the rock it was meant to cover, at the point when you can least easily get to it.

04 Sizing

Available Rolls

Two lengths in the same 6-foot width. Both are the same 8 oz fabric — the only question is how much of it the job needs.

6′ × 100′600 sq ft 6′ × 300′1,800 sq ft
Part numberRoll sizeSq ftBest for
FEC8061006′ × 100′600A garden pond or a water feature — enough to line the excavation and run up the sides
FEC8063006′ × 300′1,800Larger ponds, a pond and waterfall together, or rip-rap and erosion work alongside
Size it larger than the liner footprint. The fabric has to follow the contours, run up the sides and reach past the top edge — and runs overlap rather than butt. Measuring the pond floor alone will leave you short.

05 Where it goes

Applications

Pond underlayment Waterfalls & cascades Water features Heavy rip-rap Boulder retaining walls Stabilization & separation Erosion control Streams & waterways
The same properties that protect a liner — high strength, dimensional stability and high water flow — are what make this fabric specified under heavy rip-rap and behind boulder retaining walls. It is the same job in a different setting: hold the soil, pass the water, survive what is dropped on top of it.

06 Installation

Laying Pond Underlayment

The order only goes one way: excavation, underlayment, liner, water.

Clear the excavation of anything loose and obviously sharp first — underlayment protects against what remains, not against a rock you could have lifted out by hand. Lay the fabric into the excavation following the contours, and carry it up the sides and past the top edge.

Overlap adjacent runs generously rather than butting them, since the liner will be resting on the joint. Smooth out wrinkles as you go, then install the liner directly on top before adding any water.

Do not stop at the bottom of the excavation. Liners take their worst abrasion where they turn up a bank and where rock or edging rests against them at the rim. Underlayment that covers only the floor leaves the most vulnerable part of the liner unprotected.

07 You will also need

6″ Landscape Staples

Fabric that shifts while you are positioning a liner creates gaps exactly where you cannot see them afterwards. Pin the fabric at the rim and along the overlaps to hold it in place while the liner goes in.

6″ landscape staples are the standard pin for this fabric, and they are sold separately — worth adding to the order rather than discovering the gap on install day.

View 6″ Landscape Staples

08 Documentation

Specification Sheet

Pond underlayment fabric specification sheetPDF

09 Buying from us

Why Buy Pond Underlayment From Landscape Discount

Commercial grade only

Professional-grade needle-punched geotextile, not a general-purpose matting. We never substitute another fabric or weight without the explicit consent of the customer.

Heavy-duty 8 oz

The weight specified where puncture protection actually matters, rather than the lightest fabric that will technically lie flat.

Two lengths, same fabric

600 sq ft for a garden pond, 1,800 for larger work — and the same fabric covers rip-rap and erosion jobs on the same site.

We answer the phone

When you call you quickly reach a helpful, live person happy to answer your product and order questions. (M-F 5:00 am - 3:00 pm Pacific Time)

10 Common questions

Pond Underlayment FAQs

Does the underlayment go above or below the liner?
Below. The order is excavation, underlayment, waterproof liner, then water. The fabric protects the liner from what is underneath it and supports it over soft spots.
Does it work with rubber and PVC liners?
Yes — it provides dependable protection against punctures to both rubber and PVC liners in pond and waterfall applications.
How much do I need?
Size it larger than the liner footprint, because the fabric has to follow the contours, run up the sides and reach past the top edge. The 6′ x 100′ roll gives 600 sq ft and the 6′ x 300′ gives 1,800. Add extra for overlaps.
Do I overlap or butt the seams?
Overlap, generously. A butted joint that opens leaves the liner sitting on bare ground at exactly the point where two pieces of fabric were supposed to protect it.
Does it need to go up the sides?
Yes, and this is the step most often skipped. Liners take their worst abrasion where they turn up a bank and where rock or edging rests against them at the rim, so fabric that covers only the floor leaves the most vulnerable area exposed.
Will it rot under a pond?
No. It is a non-biodegradable polypropylene geotextile and it is rot and mildew resistant, which is what makes it suitable for permanent burial between water and wet ground.
Can I use it for anything besides a pond?
Yes. The same fabric is specified for heavy rip-rap, boulder retaining walls, stabilization and separation, and erosion control — the same properties in a different setting.
Do I still need to clear the excavation?
Yes. Underlayment protects against what remains after a reasonable clear-out, not against a rock you could have lifted out by hand. Remove anything loose and obviously sharp first.
How do I hold it in place while I fit the liner?
Pin the fabric at the rim and along the overlaps. 6″ landscape staples are the standard pin for this fabric and are sold separately.
What does shipping cost?
Nothing. Shipping is free on every order, at any quantity.
