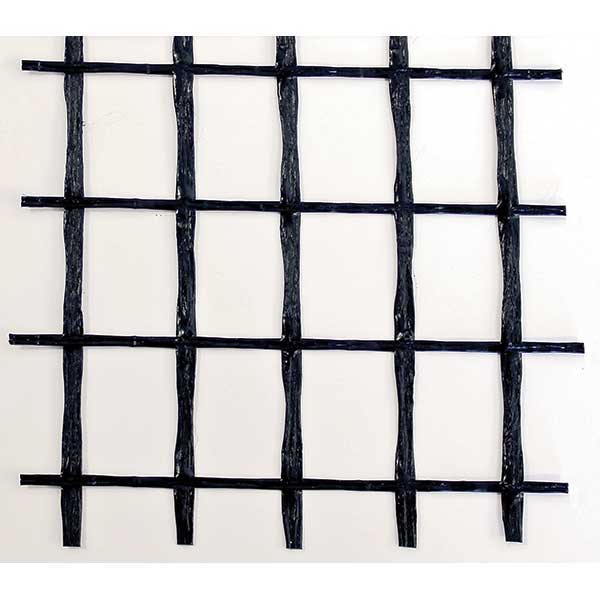

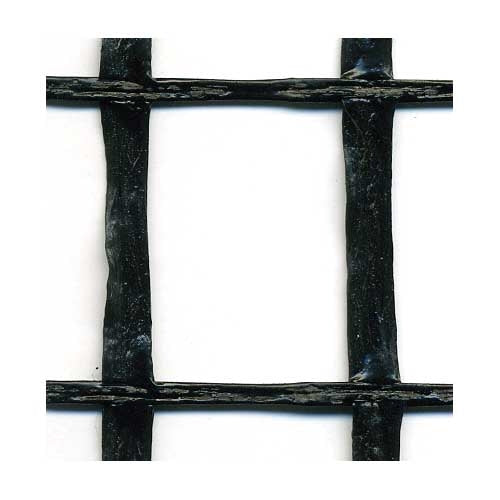

Geogrid Universal, Soil Stabilization Grid 6' x 50' Roll

Model: U650
Brand: SRW
Size: 6' x 50'
Square Yards Per Roll: 33.33
Color: Black
Maximum Retaining Wall Height: 6'

Free Shipping

Building a wall taller than 6 feet?
See our other geogrid products for high walls.

Looking for Roadbase Geogrid? View Selection >

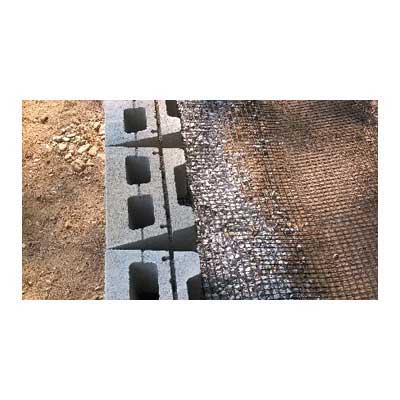

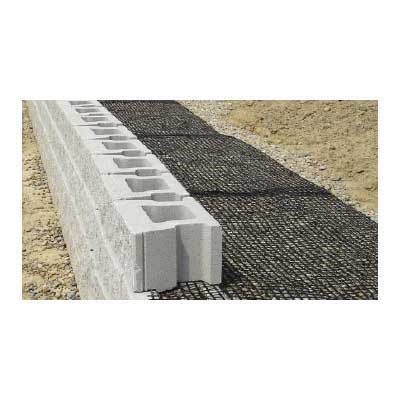

Geogrid is a reinforcement fabric which provides strength to retaining walls and helps to prevent against collapse. In order to provide effective stability, geogrid is placed in multiple layers within the retaining wall. (see illustration below)

Click to Enlarge the Above Diagram

Applications

• Retaining walls
• Steep slopes
• Sub-grade stabilization
• Soft soils under embankments
• Waste containment/landfills

Specifications

Download Specification Sheet - Universal Geogrid >

Installation

Download Geogrid Installation Guide >

Sizes Available:

Universal Geogrid

Bi-directional geogrid which may be installed either perpendicular or parallel to the wall for lengths 3, 4 or 6 feet.

3 Series Geogrid

Perfect for retaining walls up to 10 feet in height and is bi-directional. This geogrid may be placed parallel to or perpendicular to the retaining wall.

5-9 Series Geogrid

Uni-directional. This geogrid must be placed perpendicular to the retaining wall to retain its strength.

Road Base Geogrid

Bi-directional. This geogrid must be rolled out in the direction of the road.

More Geogrid

We also offer uni-directional 10 Series, 11 Series, 12 Series, 18 Series, 19 Series and 35 Series. In addition, we offer pricing on Synteen, Mirafi and Strata geogrid. These are non-stocking items but are available upon request.

SRW Products engineers use LTDS calculations to identify and reduce factors which can impact the long-term performance of a geotextile reinforced system. This allows us to offer a variety of products.
