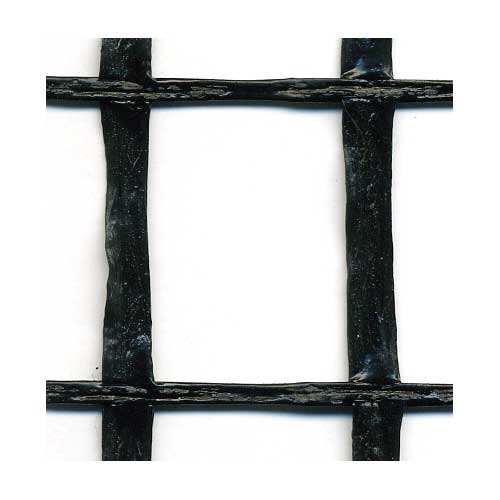

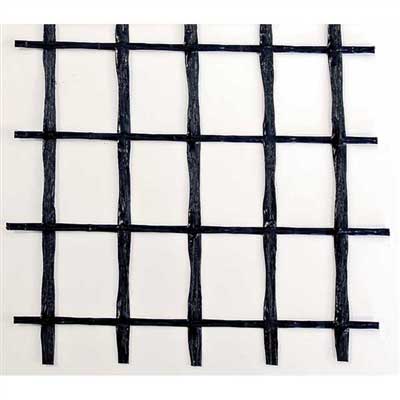

Geogrid Universal, Soil Stabilization Grid 4' x 50'
Roll
Model: U450
Brand: SRW
Size: 4' x 50'
Square Yards Per Roll: 22.22
Color: Black
Maximum Retaining Wall Height: 6'
Free Shipping
Building a wall taller than 6 feet?
See our other geogrid products for high walls.
Looking for Roadbase
Geogrid?
View Selection >

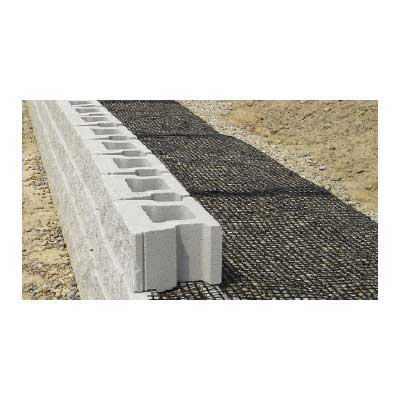

Geogrid is a reinforcement fabric which provides strength to retaining walls and helps to prevent against collapse. In order to provide effective stability, geogrid is placed in multiple layers within the retaining wall. (see illustration below)
Click to Enlarge the Above Diagram
Applications
- Retaining walls
- Steep slopes
- Sub-grade stabilization
- Soft soils under embankments
- Waste containment/landfills
Specifications
Download Specification Sheet - Universal Geogrid >
Installation
Download Geogrid Installation Guide >
Sizes Available:
Universal Geogrid
Bi-directional geogrid which may be installed either perpendicular or parallel to the wall for lengths 3, 4 or 6 feet.
|
Universal - Bi-Directional - LTDS 636 - Walls up to 6'
|
|
PART NUMBER
|
SIZE
|
SQ YDS/ROLL
|
MIN. ORDER QUANTITY
|
|
GSRW U350
|
3'x50'
|
16.67
|
1
|
|
GSRW U445
|
4'x45'
|
20.00
|
1
|
|
GSRW U450
|
4'x50'
|
22.22
|
1
|
|
GSRW U650
|
6'x50'
|
33.33
|
1
|
3 Series Geogrid
Perfect for retaining walls up to 10 feet in height and is bi-directional. This geogrid may be placed parallel to or perpendicular to the retaining wall.
|
3 Series - Bi-Directional - LTDS 1093 - Walls up to 10'
|
|
PART NUMBER
|
SIZE
|
SQ YDS/ROLL
|
MIN. ORDER QUANTITY
|
|
GSRW 3450
|
4'x50'
|
22.22
|
1
|
|
GSRW 365
|
6'x50'
|
33.33
|
1
|
|
GSRW 3615
|
6'x150'
|
100.00
|
1
|
|
GSRW 31215
|
12'x150'
|
200.00
|
1
|
5-9 Series Geogrid
Uni-directional. This geogrid must be placed perpendicular to the retaining wall to retain its strength.
|
5 Series - Uni-Directional in Roll Direction - LTDS 1919
|
|
PART NUMBER
|
SIZE
|
SQ YDS/ROLL
|
MIN. ORDER QUANTITY
|
|
GSRW 565
|
6'x50'
|
33.33
|
1
|
|
GSRW 5615
|
6'x150'
|
100.00
|
1
|
|
GSRW 51215
|
12'x150'
|
200
|
1
|
|
7 Series - Uni-Directional in Roll Direction - LTDS 2740
|
|
PART NUMBER
|
SIZE
|
SQ YDS/ROLL
|
MIN. ORDER QUANTITY
|
|
GSRW 7615
|
6'x150'
|
100.00
|
1
|
|
GSRW 71215
|
12'x150'
|
200.00
|
1
|
8 Series - Uni-Directional in Roll Direction - LTDS 3412
CALL FOR PRICING:
(800) 524-4161
|
|
PART NUMBER
|
SIZE
|
SQ YDS/ROLL
|
MIN. ORDER QUANTITY
|
|
GSRW 81215
|
12'x150'
|
200.00
|
1
|
9 Series - Uni-Directional in Roll Direction - LTDS 4137
CALL FOR PRICING:
(800) 524-4161
|
|
PART NUMBER
|
SIZE
|
SQ YDS/ROLL
|
MIN. ORDER QUANTITY
|
|
GSRW 91215
|
12'x150'
|
200.00
|
1
|
Road Base Geogrid
Bi-directional. This geogrid must be rolled out in the direction of the road.
Road Base Reinforcement
CALL FOR PRICING:
(800) 524-4161
|
|
PART NUMBER
|
SIZE
|
|
GSRW RB 11
|
12'x150'
|
|
GSRW RBPP 11
|
13.1'x246'
|
|
GSRW RB 12
|
12'x150'
|
|
GSRW RBPP 12
|
13.1'x164'
|
More Geogrid
We also offer uni-directional 10 Series, 11 Series, 12 Series, 18 Series, 19 Series and 35 Series. In addition, we offer pricing on Synteen, Mirafi and Strata geogrid. These are non-stocking items but are available upon request.
SRW Products engineers use LTDS calculations to identify and reduce factors which can impact the long-term performance of a geotextile reinforced system. This allows us to offer a variety of products.
|
