Biobarrier root control yellow fabric Typar
Biobarrier 12" x 102 ft. - Root Control Fabric - Typar
Biobarrier 12" x 102 ft. - Root Control Fabric - Typar
Biobarrier 12" x 102 ft. - Root Control Fabric - Typar
Biobarrier root control yellow fabric Typar
Biobarrier 12" x 102 ft. - Root Control Fabric - Typar
Biobarrier 12" x 102 ft. - Root Control Fabric - Typar
Biobarrier 12" x 102 ft. - Root Control Fabric - Typar

Biobarrier 12" x 102 ft. - Root Control Fabric - Typar

SKU 213014
$750.05 - $750.05
$750.05
$750.05 - $750.05
$750.05
Free Shipping

Typar · BioBarrier Root Control Fabric · 213014

The narrowest roll in the range — 12" wide by 102 feet of Typar BioBarrier root control fabric. Where a rigid panel cannot go, this can: wrapped around a pipe, laid flat beneath a container, or stood in a shallow trench.

Roll Size
12" x 102'Product code 213014
Coverage
102 ftLinear feet per roll
Guarantee
15 yrMulti-year root control
Active Ingredient
17.5%Trifluralin, non-systemic
  • Made in the USA

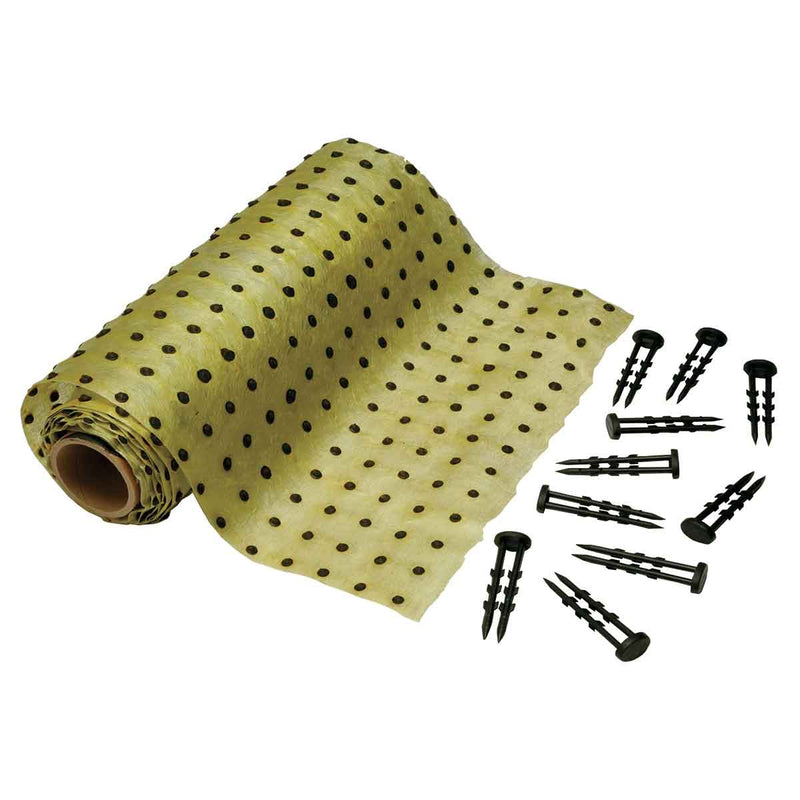

  • Fixing pins included
  • Porous — passes water & nutrients
  • Vertical, horizontal or surround
  • Free shipping on all orders

Free Shipping - Please submit a Quote Request for quantities larger than listed below.

Quantity Price Per Unit
(Free Shipping)
1 $750.05
2+ $712.55
3+ $675.05
10+ $637.54

01 Typar BioBarrier

58.5-Inch BioBarrier Root Control Fabric

The widest roll in the range — 58.5" by 102 feet of Typar BioBarrier root control fabric. Nearly five feet of treated depth, specified for dams, embankments, landfill caps and the deepest tree work.

At this width the trench is the real cost of the job, so getting the treated zone deep enough first time matters more than the price of the roll. Guaranteed 15 years, fixing pins included, ships free.

Typar BioBarrier root control fabric installed alongside a sidewalk
Installed alongside a sidewalk to keep roots out of the slab.

15year guarantee · multi-year root control

Time-release nodules carrying 17.5% Trifluralin keep working for up to fifteen years in the ground.

02 How it works

A Chemical Barrier, Not A Physical One

Every other root barrier we sell is a wall — roots reach it and get deflected around or under. BioBarrier works differently. Time-release nodules bonded to a porous geotextile create a "no root" zone in the soil on both sides of the fabric. Root tips entering that zone stop dividing and turn away; roots outside it carry on growing normally. Nothing is severed, and overall plant health is unaffected.

How BioBarrier Works

03 Product data

Specifications

Product code213019
BrandTypar
Roll size58.5" x 102'
Linear feet102
TypeHerbicide-based root control fabric
Active ingredient17.5% Trifluralin — non-systemic
Service lifeGuaranteed 15 years
FabricFlexible porous geotextile — passes water, air and nutrients
OrientationVertical, horizontal or as a surround
Fixing pinsIncluded
JoiningSod pins (included) or construction adhesive
CuttingEasily cut to size on site
OriginMade in the USA
About the active ingredient. Trifluralin is non-systemic, biodegrades in soil, and has extremely low water solubility, which limits leaching. It acts only on root tips inside the treated zone.

04 Where it gets used

Applications

Because the barrier is a flexible fabric rather than a rigid panel, it goes where a panel cannot — wrapped around a pipe, laid flat under a slab, or shaped to an irregular excavation.

Sidewalks & footpaths Foundations Dams & embankments Around pipes Septic & drain fields Around trees Under pots & containers Utility trenches Roadways & kerbs Retaining walls Electrical substations Landfill caps Athletic fields Planters
A use no panel can match. Laid under a pot or container, BioBarrier stops roots escaping through the drain holes and rooting into the ground beneath.

05 The mechanism

Why Roots Turn Away

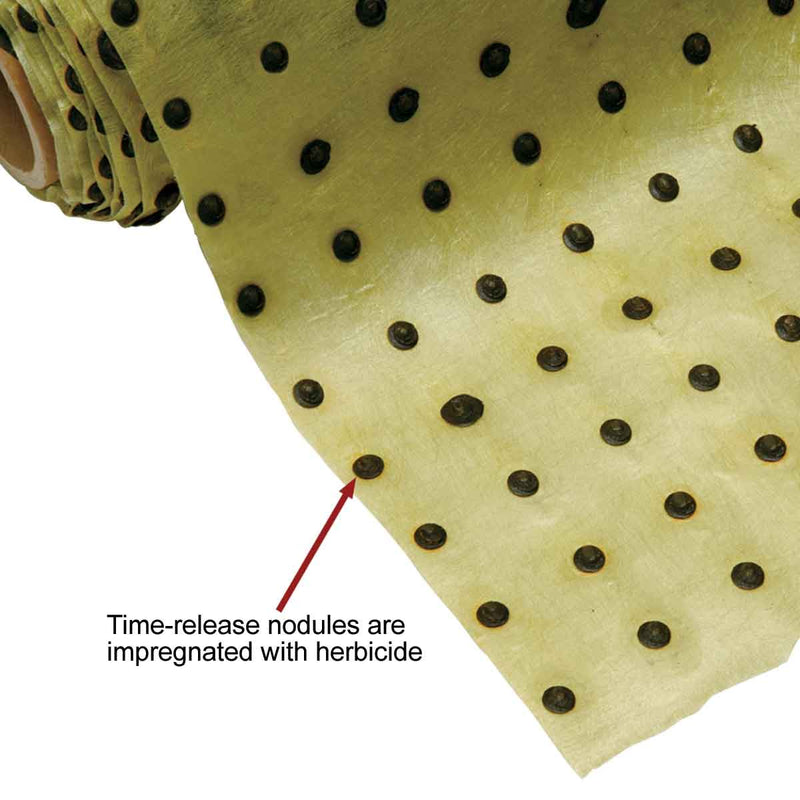

Time-release nodules

The herbicide is held in nodules bonded to the fabric and released slowly into the surrounding soil, which is what stretches effectiveness across fifteen years rather than one season.

Root tip cell division stops

Trifluralin acts on dividing cells at the growing root tip. A root entering the treated zone simply stops extending in that direction and grows elsewhere.

A zone, not a surface

The "no root" zone extends into the soil on both sides of the fabric, so protection does not depend on a root physically touching the barrier. Roots outside the zone grow normally.

The tree stays healthy

Nothing is cut and the herbicide is non-systemic, so it is not taken up and translocated through the plant. Overall plant health is unaffected.

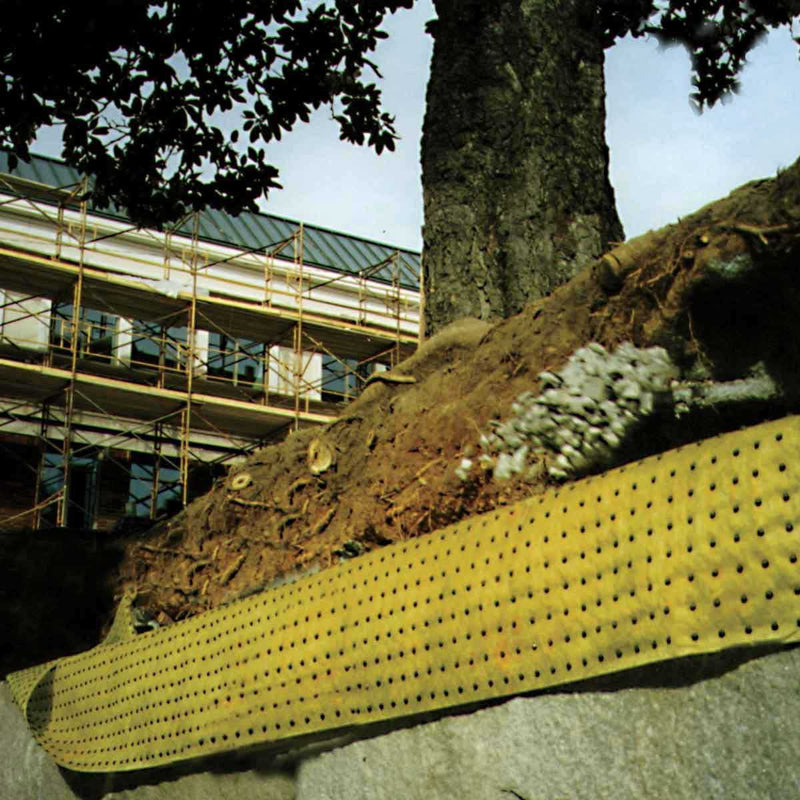

BioBarrier root control fabric being installed to contain tree roots
BioBarrier being installed to contain tree roots.
Tree roots stopped at the face of BioBarrier fabric
The built-in herbicide stops roots penetrating the fabric.
BioBarrier fabric on a commercial job site
Rugged enough for commercial and residential job sites.
BioBarrier protecting an underground pipe from tree roots
Keeps roots out of underground pipes and septic systems.

06 Choosing a width

BioBarrier Roll Sizes

Every roll is the same fabric with the same nodule loading and the same fifteen-year guarantee. Width is the variable — deeper installs and more aggressive species call for a wider roll.

Roll width Roll length Typical use
12"102 ftShallow trenches, pipe wraps, under containers
19.5"102 ftSidewalk edges and light paving
24"100 ftGeneral hardscape and street tree work
29"102 ftDeeper trenches, foundations, utility runs
39"102 ftVigorous species, structural protection
58.5"102 ftDeepest installs, dams, landfill caps
Note the 24" roll is 100 feet where every other width is 102. Typical use is a guide only — root depth varies with species, soil, climate and rainfall.

07 Sizing guide

BioBarrier Product Selector

Typar's selector chart cross-references application against roll width, which is the fastest way to sanity-check a width before you order.

Typar BioBarrier product selector chart matching application to roll width
Click to enlarge.

08 Installation

Three Orientations

  • Vertical. The standard install — the fabric stands in a trench between the tree and whatever you are protecting, creating a treated zone through the full depth of the trench.
  • Horizontal. Laid flat, under a slab, a pathway or a container, so roots cannot climb into the structure from below.
  • Surround. Wrapped around a root ball, a pipe or a utility run, giving protection on every side.

The fabric cuts easily to size, and fixing pins are included with every roll. Where two rolls meet, join them with the sod pins supplied or with construction adhesive.

Storage matters with this product. BioBarrier is a herbicide-based barrier, so its potency depends on how it has been kept. Stock left outside on a pallet in the sun can arrive partially exhausted. Keep yours in a cool, dry place until the day it goes in the ground — and order from someone who does the same.

Tree Application Detail Underground Structure Detail

09 Free shipping, every order

BioBarrier Shipping Time

BioBarrier orders ship same day (M-F) if order is placed before 12:00 noon PST. Transit times displayed in the map are listed in business days and are approximate. The transit times displayed on the map is for standard ground shipping.

BioBarrier shipping transit time map of the United States in business days
Click to enlarge.

10 Buying from us

Why Buy BioBarrier From Landscape Discount

Only authentic Typar BioBarrier

We never ship look-alike or imitation product. You get genuine Typar BioBarrier, and you get what you ordered, every time.

Our stock is stored correctly

BioBarrier is herbicide-based and must be kept cool and dry to retain full effectiveness. Ours is stored indoors, not outside on a pallet in direct sunlight — so it is not partially exhausted before it reaches your trench.

Fixing pins are in the box

Every roll ships with the sod pins needed to fix it and to join rolls together, so you are not hunting for fixings on install day.

We answer the phone

When you call you quickly reach a helpful, live person happy to answer your product and order questions. (M-F 5:00 am - 3:00 pm Pacific Time)

11 Documentation

Guides, Case Studies And Safety Data

BioBarrier brochurePDF How BioBarrier worksPDF Design detail — tree applicationPDF Design detail — underground structure applicationPDF Case study — electrical substation, QuebecPDF Case study — electrical fencing, QuebecPDF BioBarrier MSDS — safety data sheetPDF

12 Related options

Other Roll Widths

Typar BioBarrier root control fabric 12

12" x 102'

Shallow trenches, pipe wraps, under containers

View This Size
Typar BioBarrier root control fabric 19.5

19.5" x 102'

Sidewalk edges and light paving

View This Size
Typar BioBarrier root control fabric 24

24" x 100'

General hardscape and street tree work

View This Size
Typar BioBarrier root control fabric 29

29" x 102'

Deeper trenches, foundations, utility runs

View This Size
Typar BioBarrier root control fabric 39

39" x 102'

Vigorous species, structural protection

View This Size

13 Common questions

BioBarrier FAQs

How does BioBarrier differ from a physical root barrier?
A physical barrier — an HDPE roll or a moulded panel — is a wall that deflects roots around or under it. BioBarrier creates a chemical "no root" zone in the soil either side of a porous fabric. Root tips entering that zone stop dividing and grow elsewhere. Nothing is severed, and water, air and nutrients still pass through the fabric.
Will it harm the tree?
No. Trifluralin is non-systemic, so it is not taken up and translocated through the plant. It acts only on dividing cells at root tips inside the treated zone. Roots outside the zone continue growing normally and overall plant health is unaffected.
How long does it last?
Guaranteed for 15 years. The herbicide sits in time-release nodules bonded to the fabric, which is what spreads effectiveness over that period rather than a single season.
How much do I need?
Measure the run you want to protect. This roll gives you 102 linear feet in one length. Add a little for overlaps if your run needs more than one roll.
Which width should I choose?
Width sets how deep the treated zone runs. Narrow rolls suit shallow trenches, pipe wraps and under-container work; wider rolls suit deeper trenches, foundations and vigorous species. Check the size table and the product selector chart above.
Can it be laid flat rather than vertically?
Yes. It installs vertically in a trench, horizontally under a slab or container, or wrapped as a surround around a root ball or pipe. That flexibility is the main practical advantage over a rigid panel.
How do I join two rolls?
With the sod pins included in the box, or with construction adhesive. Fixing pins ship with every roll.
Does the herbicide leach into groundwater?
Trifluralin has extremely low water solubility, which limits leaching, and it biodegrades in soil. It is non-systemic and acts locally on root tips within the treated zone. The MSDS is in the documentation section above.
Can I cut it on site?
Yes, the fabric cuts easily to size — no special tools needed.
Does it stop roots getting into pipes and septic fields?
That is one of its strongest applications. Wrapped around a pipe or laid over a drain field, the treated zone keeps root tips away from joints and perforations where they would otherwise get in.
How should it be stored before installation?
Cool and dry, out of direct sunlight, until the day it goes in the ground. Heat and sun exposure degrade the herbicide, and a partially exhausted roll will not give you the service life you paid for.
What does shipping cost?
Nothing — shipping is free on all orders. BioBarrier orders placed before 12:00 noon PST ship the same day, Monday to Friday.

14 Larger projects

Need A Written Quote?

Tell us the run length, the species and how deep you need the treated zone to go, and we'll come back with a written quote. Shipping stays free at every quantity. Questions? Call (800) 524-4161.

Request A Written Quote
