NDS EZ Roll Gravel Pavers - GP4X150G - 4' x 150' Roll - Gray
NDS EZ Roll Gravel Pavers - GP4X150G - 4' x 150' Roll - Gray
NDS EZ Roll Gravel Pavers - GP4X150G - 4' x 150' Roll - Gray
NDS EZ Roll Gravel Pavers - GP4X150G - 4' x 150' Roll - Gray
NDS EZ Roll Gravel Pavers - GP4X150G - 4' x 150' Roll - Gray
NDS EZ Roll Gravel Pavers - GP4X150G - 4' x 150' Roll - Gray
NDS EZ Roll Gravel Pavers - GP4X150G - 4' x 150' Roll - Gray
NDS EZ Roll Gravel Pavers - GP4X150G - 4' x 150' Roll - Gray
NDS EZ Roll Gravel Pavers - GP4X150G - 4' x 150' Roll - Gray
NDS EZ Roll Gravel Pavers - GP4X150G - 4' x 150' Roll - Gray
NDS EZ Roll Gravel Pavers - GP4X150G - 4' x 150' Roll - Gray
NDS EZ Roll Gravel Pavers - GP4X150G - 4' x 150' Roll - Gray

NDS EZ Roll Gravel Pavers - GP4X150G - 4' x 150' Roll - Gray

SKU GP4X150G
$2,547.14 - $2,547.14
$2,547.14
$2,547.14 - $2,547.14
$2,547.14
Free Shipping

NDS · EZ Roll Gravel Pavers · Model GP4X150G

Most crushed stone sold in North America is gray — limestone, granite, trap rock — and GP4X150G is the grid that disappears into it. Hexagonal cells with shared walls carry the wheel load and stop the aggregate spreading, while a thermally welded geotextile fabric across the open bottom prevents gravel migrating into the subgrade and lifting the paver. Rated to H-20 and H-25 loading, needing no irrigation, and plowable in winter.

Roll Size: 3.87' × 149' Preassembled roll
Coverage: 577 sq ft Per roll
Strength: 53,683 psf unfilled · H-20 / H-25
Height: 1-1/8" 72 hexagonal cells per 2'×2'
  • Made in the USA
  • Bonded geotextile fabric
  • Stakes included
  • Plowable in winter
  • Free shipping on all orders

Free Shipping - Please submit a Quote Request for quantities larger than listed below.

Quantity Price Per Unit
(Free Shipping)
1 $2,547.14
2+ $2,419.78
3+ $2,292.43
10+ $2,165.07

01 Support for gravel roads & parking lots

A Gravel Surface That Stops Migrating

EZ Roll Gravel Pavers reduce erosion and keep a gravel road or parking lot looking and working the way it did the day it was laid. A web of hexagonal cells with shared walls holds the aggregate in place, and a thermally welded geotextile fabric across the whole underside stops gravel migrating downward and lifting the paver — while staying porous so stormwater still filters through.

The result is a drivable, permeable gravel surface that carries H-20 and H-25 loads, needs no irrigation, and presents an attractive alternative to concrete or asphalt. It also works for erosion control on slopes and in swales, and can be plowed to clear snow.

53,683psf · unfilled compressive strength

Filled paver ultimate load 500,000 lbs on a 6" plate test.

02 Third-party tested

How EZ Roll Compares On Strength

How does the NDS EZ Roll measure up against its competitors? The detailed third-party testing report compares compressive strength across rolled permeable paver products.

Download Report

03 Product data

Specifications

ModelGP4X150G
BrandNDS
SeriesEZ Roll Gravel Pavers
Nominal size4' × 150'
Actual size3.87' × 149'
Coverage per roll577 sq ft
ColorGray — also black, and the other two colors in the range
Roll height1-1/8"
Cells per 2' × 2' section72 nested honeycomb cells, 2-1/4" hexagons with shared walls
Compressive strength, unfilled53,683 psf
Filled paver ultimate load500,000 lbs (13,889 psi, 6" plate test)
Load ratingH-20 and H-25
MaterialPolyolefin plastic, UV stabilized
GeotextileThermally welded, puncture-resistant, 100% open-bottom filter fabric
ConnectionEnd-to-end and side-to-side snap-lock clips
StakesIncluded with each roll
Chemical resistanceSuperior, totally inert
Life expectancy25 years when well maintained
Snow removalMay be plowed
OriginMade in the USA
Ultra-strong hexagonal design. The fused hexagonal cell geometry gives superior strength and long-term durability compared to pavers that rely on linked circles or squares for strength.

04 Where it gets used

Recommended Applications

Designed for continuous use, and best where the subsoil infiltrates water. Poor-draining soil may require an underdrain.

Residential driveways Parking lots Overflow parking lots Golf cart paths Service roads Jogging tracks Bike paths ATV paths Equestrian parks Trail reinforcement Runoff areas Fire lanes Emergency vehicle access RV & boat access and parking Truck & cart wash-down areas Truck maintenance yards Equipment yards Construction entrances Roadway shoulders Slope & swale erosion control

05 The defining feature

Bonded Geotextile Fabric

What separates the gravel paver from the grass version is a continuous piece of geotextile fabric thermally welded across the entire open bottom of the roll. It does two jobs at once, and both matter on a gravel surface.

  • Holds the fill. The fabric stops gravel migrating down into the subgrade, which is what causes cells to empty and the paver to lift.
  • Stays porous. It filters stormwater runoff through to the soil below rather than shedding it, so the surface stays permeable.
  • Resists puncture. Thermally welded rather than glued, so it survives the aggregate being dumped and raked across it.

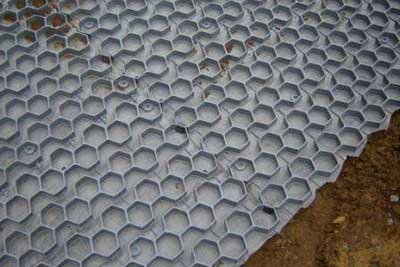

Close up of NDS EZ Roll gravel paver hexagonal cells with bonded geotextile fabric
Hexagonal cells over the bonded fabric — click to enlarge.

06 Get the fill right

Which Gravel To Use

The fill matters as much as the paver. Use clean, washed gravel, uniform in size, between 3/16" and 3/8". Angular stone is what you want — it keys together and stays put. Round stone migrates under traffic and works its way out of the cells.

Why uniform and washed matters. Fines and mixed sizes pack down and seal the surface, which defeats the permeability the system is built for. Washed, single-size angular aggregate keeps the voids open.
Clean washed angular crushed gravel sized for EZ Roll gravel paver fill
Clean, washed, angular aggregate at 3/16"–3/8".

07 Before you order

Installation

  1. Prepare the base. Grade and compact per the load class. Best results come where the subsoil infiltrates water; on poor-draining soil plan an underdrain.
  2. Roll out the pavers. Panels arrive preassembled in rolls, so large areas go down fast with the fabric side down.
  3. Snap-lock the seams. End-to-end and side-to-side clips join the rolls into a continuous mat.
  4. Pin it down. Stakes are included with each roll — secure the mat before filling.
  5. Fill the cells. Spread clean, washed 3/16"–3/8" angular gravel and screed level with the top of the cells.
Load capacity depends on the full section, not just the paver. The roll is rated to H-20 and H-25, but for fire lanes and emergency access follow the CAD detail that matches your load class and confirm base depth with your local authority.

Installation Guide (PDF)

NDS EZ Roll gravel paver GP4X150G roll in gray
NDS EZ Roll Gravel Pavers, model GP4X150G.

08 Match the aggregate

Available In Four Colors

EZ Roll gravel pavers come in four colors so the grid disappears into the gravel you're using rather than showing through it.

NDS EZ Roll gravel paver in black BlackGP4X150
NDS EZ Roll gravel paver in gray GrayGP4X150G — this product
NDS EZ Roll gravel paver in tan TanGP4X150T
NDS EZ Roll gravel paver in brick red Brick RedGP4X150R

Colors shown on screen are not exact and should not be used for final color matching to surrounding terrain.

09 In the field

Project Photos

Residential gravel driveway built on NDS EZ Roll gravel pavers
Residential gravel driveway.
NDS gravel paver roll being unrolled across a prepared base
Rolling out over the prepared base.
Aggregate being dumped onto laid NDS gravel pavers before screeding
Filling the cells with aggregate.
Permeable gravel paver parking lot in service
Parking lot on stabilized gravel.
Cars parked on a gravel surface reinforced with NDS EZ Roll gravel pavers
Vehicle parking with no rutting.
Finished stabilized gravel lot holding its surface and grade
Finished lot holding its grade.

Click any photo to enlarge.

10 Why specify it

Environmental And Competitive Benefits

Environmental benefits

  • Permeable surfaces eliminate or reduce stormwater runoff.
  • Stormwater filters naturally through the subsurface, reducing pollutants.
  • Water is conserved — gravel needs no irrigation to maintain.
  • A sustainable alternative to traditional concrete or asphalt.

Competitive benefits

  • Unfilled compressive strength of 53,683 psf, rated for H-20 and H-25 loads.
  • Ships in large rolls for fast roll-out across big areas.
  • Stakes provided with every roll.
  • Life expectancy of 25 years when well maintained, and the surface may be plowed.
  • Superior chemical resistance and totally inert.
  • Reduces demands put on the landscape drainage system.
  • Less expensive to maintain over time than traditional hardscaping.

11 Free shipping, every order

NDS Gravel Paver Shipping Time:

NDS orders typically ship same day if the order is placed before 12:00 noon EST. Transit times displayed in the map are listed in business days, are approximate and are specific to NDS products only. Transit days can increase up to a total of 5 business days if low stock is experienced at your closest warehouse (this is vary rare). The day that the order is shipped is not counted as a transit day.

The transit times displayed on the map are for standard ground shipping.

NDS ground shipping transit time map of the United States in business days

12 Buying from us

Why Buy Gravel Pavers From Landscape Discount

Professional-grade pavers only

Everything we stock comes from established US manufacturers and has been tested to take years of repeated vehicle traffic.

No off-brand substitutes

We sell pavers from manufacturers with multi-decade track records who stand behind the product.

You get the pavers you ordered

We never swap in another brand or a similar paver type without asking you first.

We answer the phone

When you call you quickly reach a helpful, live person happy to answer your product and order questions. (M-F 5:00 am - 3:00 pm Pacific Time)

13 Documentation

Guides And Literature

Cover of the EZ Roll Gravel Pavers installation guide

Installation guide & technical information

Base build-ups by load class, staking, fill specification and full technical data.

Download
Cover of the third-party permeable paver comparison report

Third-party comparison report

Independent testing comparing compressive strength across rolled permeable pavers.

Download
NDS EZ Roll gravel paver ADA compliance and flexibility report

ADA compliance & flexibility report

Firmness and stability testing to ASTM F1951-08 for accessible route surfaces.

Download
NDS landscape products catalog

NDS landscape catalog

Full NDS landscape line, including the permeable paver range and accessories.

Download

14 For specifiers

Additional Technical Information

  • EZ Roll Gravel Pavers Guide Specification 4 13 15Word DOC
  • EZ Roll Gravel Pavers Light LoadPDFDWG
  • EZ Roll Gravel Pavers Medium LoadPDFDWG
  • EZ Roll Gravel Pavers Fire Heavy LoadPDFDWG
  • EZ Roll Gravel Pavers StakingPDFDWG
  • EZflow / EZdrain Gravel Paver DetentionPDFDWG
  • Infiltration Paver for InfiltrationPDFDWG
  • EZ Roll Gravel Pavers technical spec guidePDF
  • ADA Compliance Report, ASTM F1951-08PDF

15 Related options

Other Colors And Alternatives

NDS EZ Roll gravel pavers GP4X150 roll in black

Same roll, black

GP4X150 — identical spec, the standard black grid, and the only color documented as 100% recycled material.

View GP4X150
NDS EZ Roll gravel pavers GP4X150T roll in tan

Same roll, tan

GP4X150T — identical spec, for buff, sandy and decomposed-granite aggregates.

View GP4X150T
NDS EZ Roll gravel pavers GP4X150R roll in brick red

Same roll, brick red

GP4X150R — identical spec, for red rock, rust and brick-toned aggregates.

View GP4X150R
NDS EZ Roll grass pavers EZ4X150 roll

Filling with grass instead?

The EZ4X150 grass paver is the same roll format without the bonded fabric, filled with soil and seeded.

View EZ4X150
EZ Marker parking spot markers for grass and gravel pavers

Marking out parking spaces?

EZ Marker snaps into empty cells to outline driving lanes, stalls and fire lanes.

View EZ Marker

16 Common questions

Frequently Asked Questions

How much area does one roll cover?
One roll measures 3.87' × 149' and covers 577 square feet. Divide your total area by 577 for roll count, then add for cuts and waste around curves and edges.
What gravel should I use to fill it?
Clean, washed gravel that is uniform in size and between 3/16" and 3/8". Angular stone works best because it keys together and stays in place; round stone migrates under traffic.
What does the geotextile fabric do?
It is thermally welded across the open bottom of the roll. It stops gravel migrating down into the subgrade — which would empty the cells and lift the paver — while staying porous so stormwater still filters through to the soil.
Can fire trucks and emergency vehicles drive on it?
Yes. The paver is rated for H-20 and H-25 loading, with an unfilled compressive strength of 53,683 psf and a filled ultimate load of 500,000 lbs on a 6" plate test. Build to the fire and heavy load CAD detail and confirm requirements with your local authority.
Are stakes included?
Yes, stakes are provided with every roll.
Can I plow snow off it?
Yes. NDS states the surface may be plowed to remove snow.
Does it meet ADA requirements?
The gravel paver has been tested for firmness and stability to ASTM F1951-08. The compliance report is in the documentation section above — check it against your project's accessible route requirements.
What subgrade does it need?
Best results come where the subsoil infiltrates water. Poor-draining soil may require an underdrain. Base depth depends on the load class — see the matching CAD detail.
How is this different from the grass paver?
Same roll format and hexagonal cell structure, but the gravel version adds a thermally welded geotextile fabric across the bottom to retain aggregate. The grass version is filled with soil and seeded instead, and needs irrigation to establish; gravel needs none.
What does shipping cost?
Nothing — shipping is free on all orders. See the transit map above for approximate ground delivery times.

17 Larger projects

Ordering 10 Or More Rolls?

Tell us the square footage you need and we'll come back with volume pricing, or request a written quote. Shipping stays free at every quantity.

Request A Written Quote
