Road Base Geogrid, Soil Stabilization Grid - Type 1 - 12.9' x 246' Rol

Type 1 Road Base Geogrid Soil Stabilization Roll

Rolled black road base geogrid soil stabilization grid product on a white background

Installer securing black biaxial road base geogrid over compacted gravel base for soil stabilization

Road Base Geogrid, Soil Stabilization Grid - Type 1 - 12.9' x 246' Roll

SKU GSRW-T1

$1,121.09 - $1,121.09

$1,121.09

$1,121.09 - $1,121.09

$1,121.09

Free Shipping

Road Base Geogrid · Type 1 · 12.9' × 246'

Type 1 road base geogrid is a biaxial stabilization grid that locks aggregate into place beneath roads, drives, and working pads. Stone pushed into the open apertures is confined by the surrounding ribs, so wheel loads spread sideways across a wider footprint instead of punching down into soft subgrade. The result is less rutting, less base material migrating into the soil below, and a firmer platform over weak ground. This is the large-format roll — 3,168 sq ft of coverage — sized for road and access-road runs rather than small patch repairs.

Roll Size: 12.9' × 246'Full-width road roll
Coverage: 3,168 sq ft352 sq yd per roll
Structure: BiaxialStrength in both directions
Color: BlackUV-stabilized grid

Subgrade stabilization
Roll out in the direction of travel
Free shipping on all orders

Download Spec Sheet

Free Shipping - Please submit a Quote Request for quantities larger than listed below.

Quantity	Price Per Unit (Free Shipping)
1	$1,121.09
2+	$1,065.04
3+	$1,008.98
10+	$952.93

01 Overview

Type 1 Road Base Geogrid

Road base geogrid is a rigid polymer grid with open apertures, laid between the subgrade and the aggregate base of a road, drive, or working pad. When stone is spread and compacted over it, aggregate pushes down into the openings and is gripped by the surrounding ribs. That interlock is what does the work: loose stone that would otherwise shove sideways under a wheel is held in a confined layer that behaves more like a slab.

The practical effect is load spreading. A wheel load arriving at the surface is distributed across a wider area of subgrade instead of concentrating in one spot, which is exactly what soft or variable ground needs. It also keeps the two layers separate, so base stone does not work its way down into soft soil and soil does not pump up into the base.

Type 1 is the larger of the two roll formats, covering 3,168 square feet, and is the practical choice when you are running continuous lengths down a road or access route.

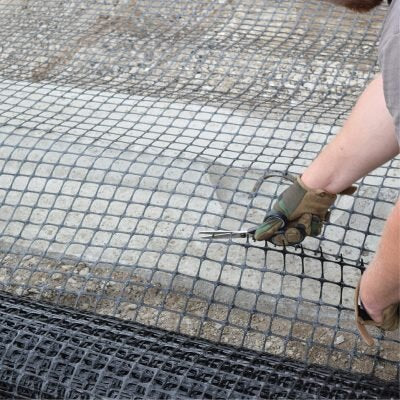

Installer securing black biaxial road base geogrid over a compacted gravel base — Grid laid over the prepared subgrade before aggregate is placed and compacted.

02 Why it works

What The Grid Actually Does

Confines the aggregate

Stone locks into the apertures and is held by the ribs, so the base resists the lateral shoving that turns into ruts and washboarding.

Spreads the load

Wheel loads transfer across a wider footprint of subgrade rather than punching straight down, which is what soft ground struggles with.

Keeps layers separate

Base stone stays in the base and subgrade soil stays below it, so the section you built is still the section you have later.

Biaxial: this grid carries tensile strength in both directions, so it suits areas where traffic turns, maneuvers, or arrives from more than one direction — not just straight-line travel.

03 Applications

Where It Is Used

Subgrade stabilization — building a working platform over soft, wet, or variable soils so the base can be compacted properly.
Gravel roads and access roads — reducing rutting and the loss of base material into the soil below.
Paved roadways and drives — reinforcing the aggregate base beneath asphalt or pavement sections.
Soft soils under embankments — reinforcement at the base of fill where bearing capacity is limited.
Parking, laydown, and equipment yards — stabilizing areas that take repeated heavy wheel traffic and turning.

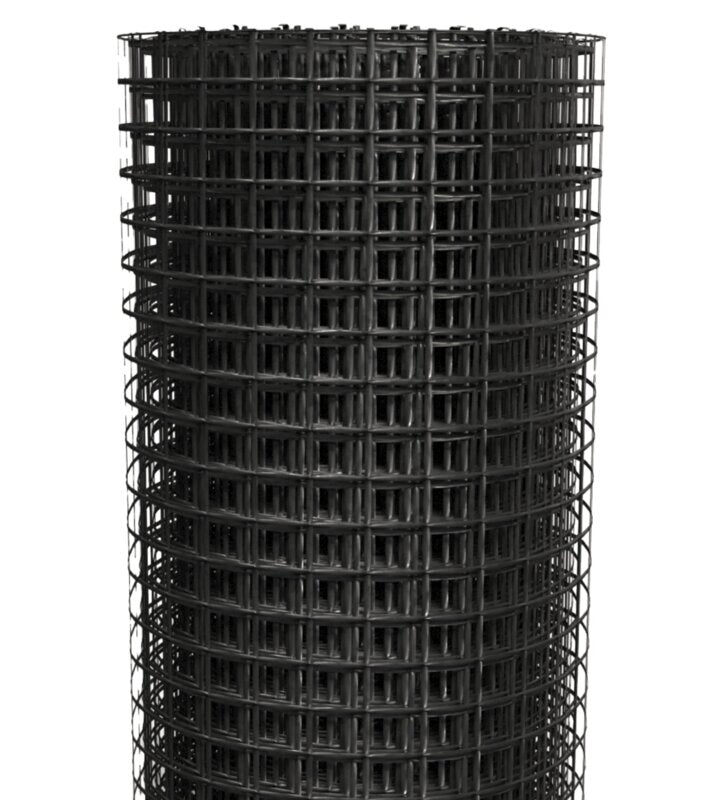

Rolled black road base geogrid soil stabilization grid — Supplied as a roll, unrolled along the line of travel over the prepared subgrade.

04 Installation

How It Goes In

1
Prepare the subgrade

Clear and grade the area, remove unsuitable material, and shape the subgrade to the profile you want. The grid follows the surface it is laid on, so grade it first.
2
Roll out in the direction of the road

Unroll the grid along the line of travel, keeping it flat and free of wrinkles. Pull it taut so it is in contact with the subgrade rather than bridging over hollows.
3
Overlap and secure

Overlap adjoining rolls at the seams and hold the grid in position with pins, staples, or spot placements of aggregate so it does not shift while you are placing stone.
4
Place aggregate and compact

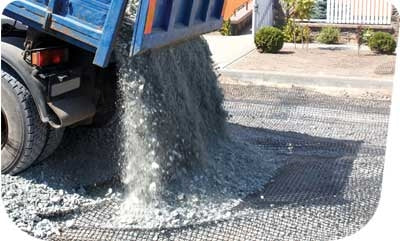

End-dump and spread stone onto the grid, working forward over placed material rather than driving directly on the bare grid. Spread in lifts and compact so the aggregate strikes through the apertures and locks in.

Design note: base thickness, aggregate gradation, and overlap should follow the project engineer's specification for your soils and traffic loads.

05 Specifications

Specifications

Product	Road base geogrid, soil stabilization grid — Type 1
Roll size	12.9' × 246'
Coverage per roll	3,168 sq ft (352 sq yd)
Structure	Biaxial — tensile strength in both directions
Color	Black
Orientation	Roll out in the direction of the road
Primary use	Subgrade stabilization and base reinforcement
Shipping	Free shipping on all orders

06 Sizes

Available Roll Sizes

Road base geogrid is offered in two roll formats. Type 1 is the longer roll for continuous road runs; Type 2 is the shorter roll for smaller areas, repairs, and jobs where a full 246-foot roll is more than the site needs.

Type 1 — this product	12.9' × 246' · 3,168 sq ft
Type 2	13.1' × 164' · View Type 2 roll

07 Questions

Road Base Geogrid FAQs

What does road base geogrid do?

It confines the aggregate base. Stone compacted over the grid pushes into the open apertures and is held by the ribs, so the base resists spreading under load. That interlock spreads wheel loads across a wider area of subgrade and keeps base stone from mixing down into soft soil.

What is the difference between Type 1 and Type 2?

They are the same style of biaxial stabilization grid in two roll formats. Type 1 is 12.9' by 246' and covers 3,168 square feet, which suits continuous road runs. Type 2 is 13.1' by 164' and covers a smaller area, which suits repairs, drives, and smaller pads.

Which direction should the grid be rolled out?

Roll it out in the direction of the road. Keep the grid flat and taut against the prepared subgrade, overlap adjoining rolls at the seams, and secure it before placing aggregate.

Do I still need a gravel base over the geogrid?

Yes. The grid reinforces and confines an aggregate base; it does not replace one. Stone must be placed and compacted over the grid so it can strike through the apertures and interlock. Base thickness and aggregate gradation should follow the project specification.

Can equipment drive directly on the grid?

No. Place aggregate onto the grid and work forward over the spread material rather than driving on the bare grid, which can displace or damage it before the base is built.

Is geogrid the same as geotextile fabric?

No. Geogrid is a rigid grid with large openings designed to interlock with and confine aggregate. Geotextile fabric is a continuous sheet used mainly for separation and filtration. On soft, wet subgrades the two are often used together, with fabric below for separation and grid above for reinforcement.
