Name: GrassProtecta Grass Reinforcement Mesh - 6.56' x 65.6' Roll - 432 Sq. Ft. - Standard Grade
Brand: Typar
SKU: 055876
Price: 1997.58 USD
Availability: InStock

GrassProtecta Grass Reinforcement Mesh - 6.56' x 65.6' Roll - 432 Sq. Ft. - Standard Grade

GrassProtecta Grass Reinforcement Mesh - 6.56' x 65.6' Roll - 432 Sq. Ft. - Standard Grade

SKU 055876

$1,997.58 - $1,997.58

$1,997.58

$1,997.58 - $1,997.58

$1,997.58

Free Shipping

Typar GrassProtecta · Standard Grade · Model 055876

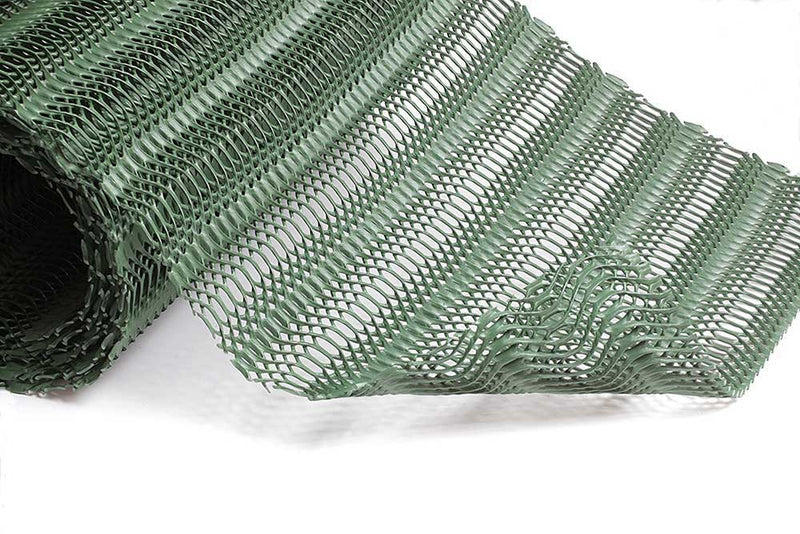

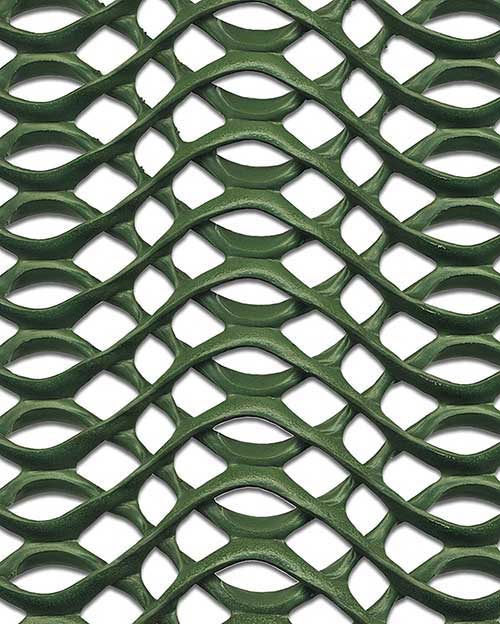

A 6.56′ × 65.6′ roll of GrassProtecta grass reinforcement mesh in standard grade, covering 432 square feet. This thick HDPE mesh installs directly onto existing grass, and the sward grows up through the apertures to knit with the mesh strands — spreading traffic loads across the surface instead of rutting it. Standard grade suits pedestrian paths, light and occasional vehicle use and overflow parking.

Roll Size: 6.56′ × 65.6′432 sq ft per roll
Grade: Standard0.45″ thick, 0.245 lb/ft²
Load: 8 tonsPer axle, imposed load
Material: HDPEApprox. 20% recycled, green

Installs directly onto existing grass
100% permeable surface
Mow as usual once established
Genuine Typar product
Free shipping on all orders

Fixing pins: the mesh is secured with Typar Steel U-Pins — a minimum of four bags (200 pins) for a single roll. Typar Steel U-Pins must be ordered with an accompanying Typar grass protection product and cannot ship alone.

Free Shipping - Please submit a Quote Request for quantities larger than listed below.

Quantity	Price Per Unit (Free Shipping)
1	$1,997.58
2+	$1,897.70
3+	$1,797.82
10+	$1,697.94

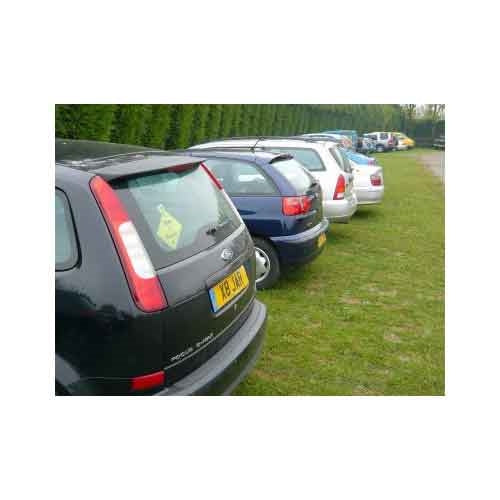

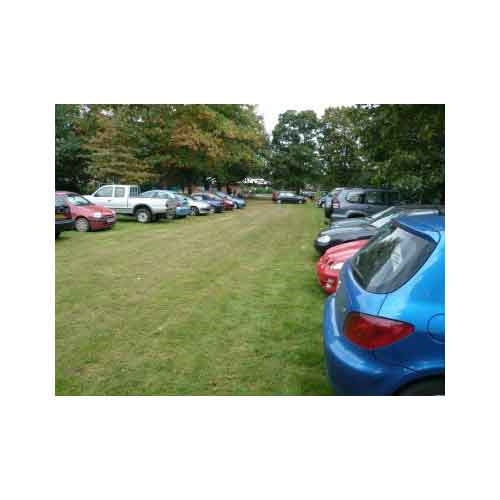

Car parked on a grass surface reinforced with GrassProtecta grass reinforcement mesh — A reinforced lawn carrying vehicle traffic without rutting.

01 Typar GrassProtecta

Grass Reinforcement Mesh That Disappears Into The Lawn

GrassProtecta grass reinforcement mesh is a thick HDPE mesh supplied on a roll and installed directly onto existing grass to protect, reinforce and stabilize the surface against damage from pedestrian and vehicle traffic. It is the answer for grass that wears, ruts and turns to mud under use — without paving over it.

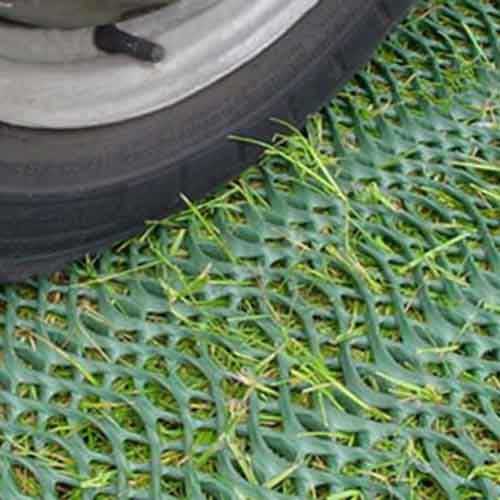

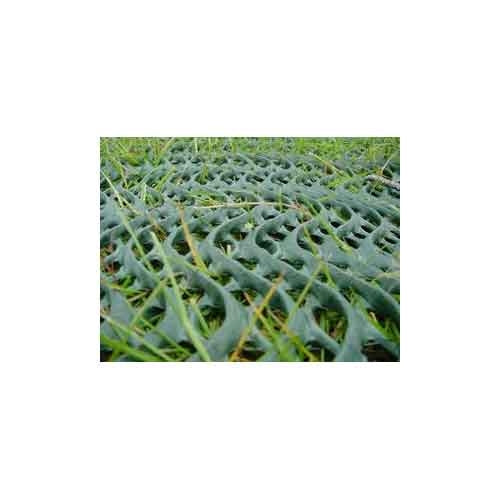

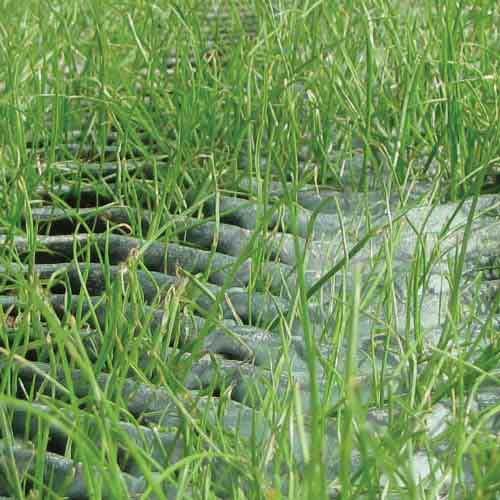

The mesh works by interlock rather than by rigidity. Grass grows up through the apertures and the blades and roots knit around the mesh strands, creating a snowshoe effect that spreads a wheel load across a much larger area instead of concentrating it in a tire print. Typar's oscillated mesh structure adds grip and reduces slip. Once the grass has filled in, the mesh is invisible — and you mow it as usual.

8tons per axle imposed load — reinforced grass

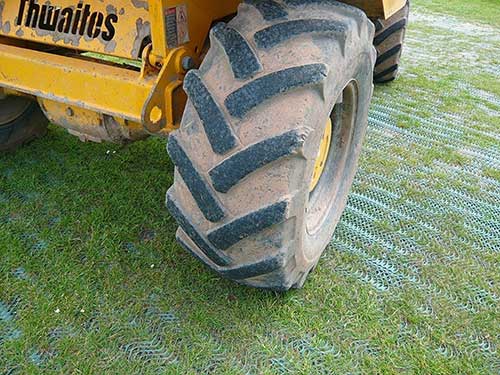

Reinforced grass that carries real traffic: cars, trucks and maintenance vehicles on a surface that stays 100% permeable.

02 Why it works

Permeable, Planted, And Load-Bearing

Because the surface stays open grass, rainwater penetrates naturally into the ground below rather than sheeting off into a drain. That makes GrassProtecta a fit for source control under LID and NPDES guidelines, and a straightforward alternative to impermeable paving where a natural grass driveway or access route is preferred, planning restrictions apply, or the paving budget will not stretch. It also installs far faster and cheaper than rigid plastic grass paving grids.

Manufacturer Product Page

03 Choose a grade

Standard Grade Vs Heavy Grade

Both grades come on the same 6.56′ × 65.6′ roll covering 432 square feet, in green, made from HDPE with roughly 20% recycled polymer and fully recyclable at end of life. The difference is thickness and mass — which is what determines how much traffic the reinforced surface will take.

Spec	Standard Grade — 055876	Heavy Grade — 055470
Thickness	0.45″	0.55″
Weight	0.245 lb/ft²	0.41 lb/ft²
Roll size	6.56′ × 65.6′	6.56′ × 65.6′
Coverage per roll	432 ft²	432 ft²
Best suited to	Pedestrian paths, occasional and light vehicle use, overflow parking	Regular vehicle traffic, heavier loads, turning traffic and access routes
Material	HDPE, approx. 20% recycled	HDPE, approx. 20% recycled
Color	Green	Green

When in doubt, go heavy. The mesh is the cheap part of the job compared with re-doing a rutted surface, and the heavier grade gives more margin as traffic grows.

GrassProtecta product selector chart comparing standard and heavy grade mesh by application — Typar's GrassProtecta selector chart — grade by application.

04 Where it goes

Where Grass Protection Mesh Is Used

Anywhere a grass surface has to carry traffic and stay grass.

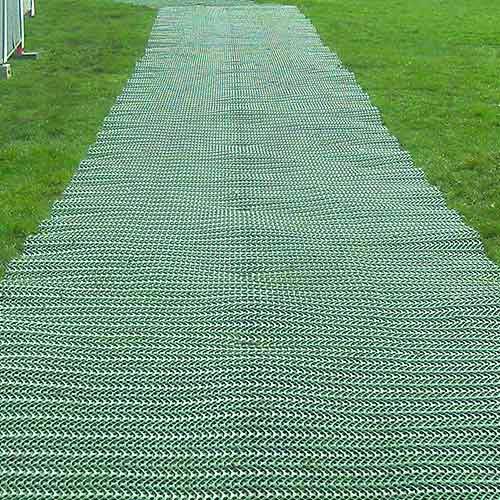

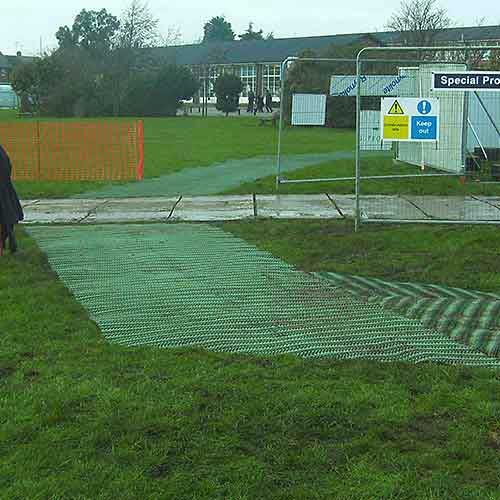

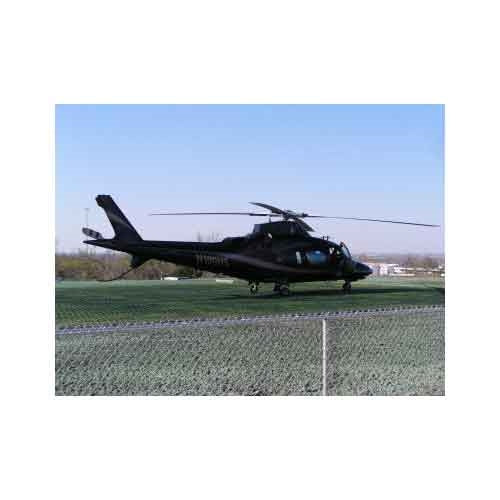

Grass parking lots Overflow parking Pedestrian & bike paths Wheelchair access routes Grassed landing pads Aircraft taxiways Equestrian surfaces Grass shoulder reinforcement Motor home access & bays Lawn parking RV parks Maintenance access routes

05 What you get

What The Reinforced Surface Delivers

A high level of grass reinforcement — up to 8 tons per axle imposed load.
Fast, cost-effective installation compared with plastic grass paving grids.
A porous, permeable, stabilized natural grass surface that lets rainwater penetrate the ground below.
Normal mowing — the surface maintains like any other lawn.
An invisible structure once grass growth is established, hidden down in the roots.
ASTM F1951-08 manufacture for ADA accessibility on grass access routes.

06 Installation

Four Steps To A Reinforced Surface

Mow the grass short. The shorter the sward, the closer the mesh sits to the soil and the faster the grass grows back through it.

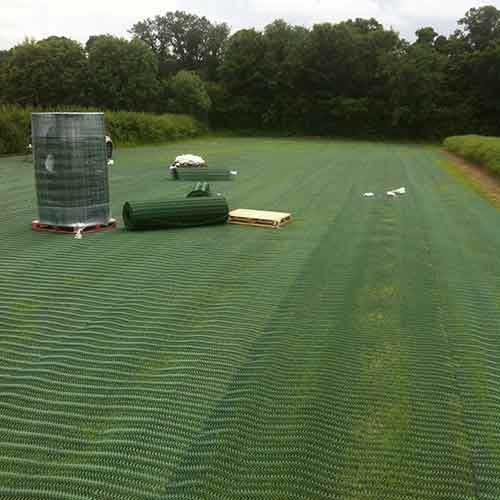

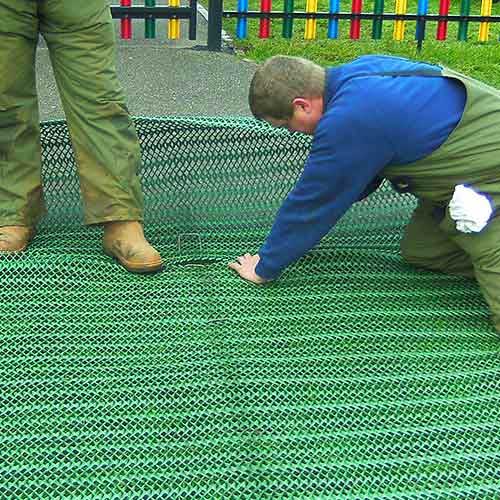

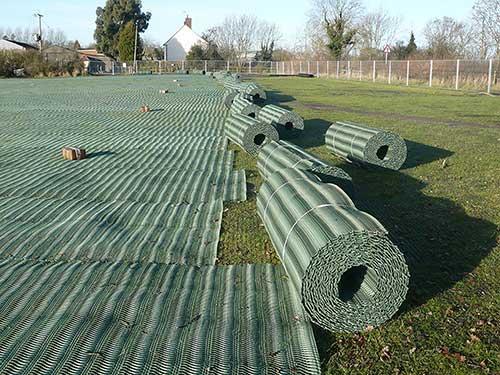

Unroll the mesh. Roll it out directly onto the existing grass surface, following the line of travel where you can.
Pin it down. Secure the mesh to the ground with steel U-pins, driven flush with a club hammer. Overlap and pin the edges where rolls meet.
Let the grass grow through. Keep the surface out of use until the sward has grown up through the apertures and knitted with the mesh strands.

GrassProtecta can also go onto newly landscaped ground, with the soil seeded as required.

Establishment matters more than anything else you do. Typar recommends leaving the mesh unused until the grass has grown through the apertures — a few months, and up to eight depending on season and location. Using the surface immediately slows grass growth and limits how well the mesh reinforces it.

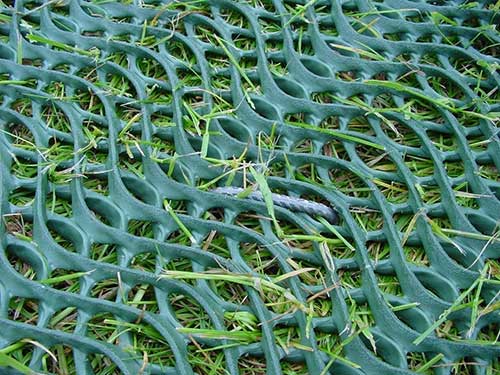

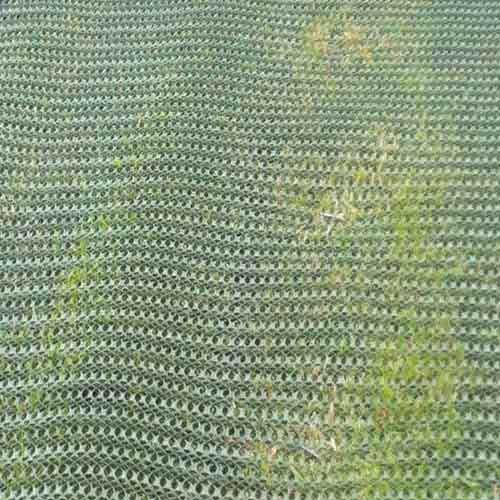

GrassProtecta mesh pinned in place on mown grass immediately after installation — Immediately after installation — mesh visible on the surface.

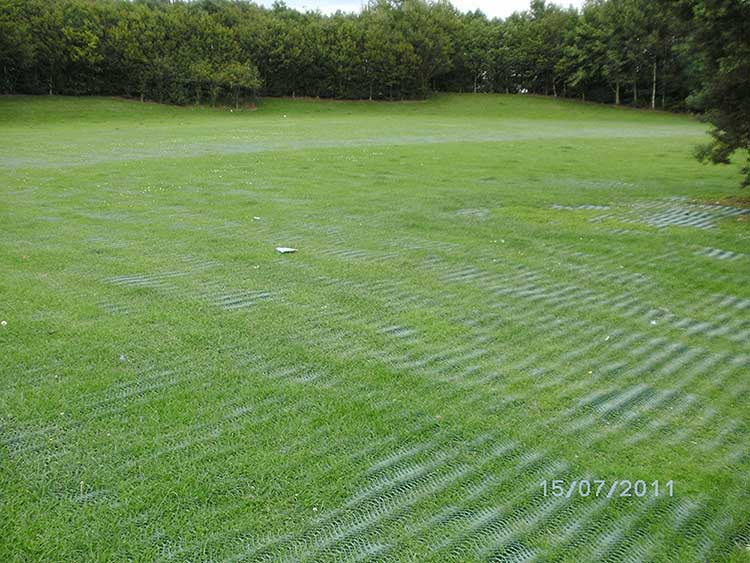

GrassProtecta mesh fully hidden by established grass growth — After full grass growth — the structure has disappeared.

Typar steel U-pins used to secure grass reinforcement mesh to the ground — Typar Steel U-Pins — 50 per bag.

07 Fixing pins

Order Your U-Pins With The Mesh

The mesh is held to the ground by steel U-pins, driven in flush with a club hammer. Pins come 50 to a bag, and getting the quantity right matters — under-pinned mesh lifts before the grass has a chance to lock it down.

A single roll: a minimum of four bags (200 pins).
Two or more rolls: a minimum of three bags (150 pins) per roll, plus one extra bag more than the total roll quantity ordered.

Please note: Typar Steel U-Pins must be ordered with an accompanying Typar grass protection product and cannot ship alone.

Add Typar Steel U-Pins

08 Manufacturer resources

GrassProtecta Technical Documentation

Data sheets, installation guides, LEED credit information, CSI specifications, CAD details and project case studies are published by Typar Geosynthetics.

GrassProtecta product page — specs & downloadsVisit
Typar downloads library — data sheets, guides, case studiesVisit
CAD drawings & CSI specificationsVisit

09 Grades and accessories

Choose Your Grade

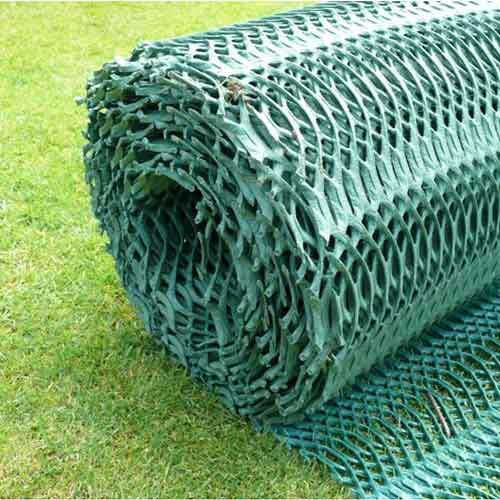

GrassProtecta standard grade grass reinforcement mesh roll

Standard grade — 0.45″

432 ft² roll for pedestrian paths, light and occasional vehicle use, and overflow parking.

View Standard Grade

GrassProtecta heavy grade grass reinforcement mesh roll

Heavy grade — 0.55″

432 ft² roll for regular vehicle traffic, heavier loads and turning traffic.

View Heavy Grade

Typar Steel U-Pins

50 pins per bag. Required to secure the mesh — add these to your mesh order.

View U-Pins

Comparing your options? We stock additional grass protection mesh from other manufacturers — including MudStop® HG heavy grade and Tenax GP-Flex 1800, in roll lengths from 25′ to 100′. View all grass protection mesh.

10 Free shipping, every order

Shipping And Volume Orders

Free shipping on every order at Landscape Discount. GrassProtecta typically ships within four days of order placement via freight, with transit times of 1–7 business days depending on location.

Covering a large area? Orders totaling over $10,000 qualify for volume pricing. Call (800) 524-4161 or submit a product quote request and we will put together written volume pricing for your project.

11 Buying from us

Why Buy GrassProtecta From Landscape Discount

Genuine Typar GrassProtecta

The authentic Typar product, manufactured to the published specification — so it matches a spec sheet or an existing installation exactly when you re-order.

Both grades stocked

Standard and heavy on the same 432 ft² roll, plus the steel U-pins to fix them — so the whole installation ships from one order.

Volume pricing on large areas

Orders totaling over $10,000 qualify for volume discounts — call or submit a quote request for written volume pricing.

We answer the phone

When you call you quickly reach a helpful, live person happy to answer your product and order questions. (M-F 5:00 am - 3:00 pm Pacific Time)

12 Common questions

Grass Reinforcement Mesh FAQs

How much traffic will the reinforced grass carry?

Once the grass has grown through and knitted with the mesh, the reinforced surface handles up to 8 tons per axle imposed load. The interlock between roots, blades and mesh strands spreads the wheel load across a wide area rather than concentrating it in a tire print.

Standard or heavy grade — which do I need?

Standard (0.45″, 0.245 lb/ft²) suits pedestrian paths, light and occasional vehicle use and overflow parking. Heavy (0.55″, 0.41 lb/ft²) is the choice for regular vehicle traffic, heavier loads and turning traffic. Both cover 432 ft² per roll.

How long before I can use the surface?

Typar recommends leaving it unused until the grass has grown up through the apertures — a few months, and up to eight depending on season and geographic location. Using it immediately slows grass growth and limits how effectively the mesh reinforces the surface, so plan the install ahead of when you need the area.

How many U-pins do I need per roll?

Pins come 50 to a bag. For the most effective pinning, a single roll needs a minimum of four bags (200 pins). For installations of two or more rolls, allow a minimum of three bags (150 pins) per roll, plus one extra bag more than the total roll quantity ordered. Note that Typar Steel U-Pins must be ordered with an accompanying Typar grass protection product and cannot ship alone.

Can I mow over it?

Yes. Once the grass has grown through, the mesh sits down in the root zone and you mow the area as usual. After establishment the structure is effectively invisible.

Do I need to excavate or build a base?

No. Unlike rigid plastic paving grids, the mesh installs directly onto the existing grass surface after mowing — which is what makes it so much faster and cheaper to install. It can also be laid on newly landscaped ground and seeded.

Is it permeable?

Yes. The surface stays open grass, so rainwater penetrates naturally into the ground below. It can be used for source control in line with LID and National Pollutant Discharge Elimination System (NPDES) guidelines, and it is a common alternative to impermeable paving where lot coverage or planning restrictions apply.

Is it ADA compliant for wheelchair access?

GrassProtecta is manufactured to ASTM F1951-08 for ADA accessibility, and grass wheelchair access routes are one of its standard applications. Confirm the specifics of your route with your local authority.

What is it made of?

High density polyethylene, with approximately 20% of the polymer from recycled material, and fully recyclable at end of life. The oscillated mesh structure is designed to increase grip and reduce slip.

How much does shipping cost?

Shipping is free on every order at Landscape Discount. GrassProtecta ships via freight, typically within four days of order placement, with 1–7 business days in transit depending on location.
