EnviroGrid Geocell Ground Grid Paver - EGA20-8 (8.4' x 21.4' x 8")
EnviroGrid Geocell Ground Grid Paver - EGA20-8 (8.4' x 21.4' x 8")
EnviroGrid Geocell Ground Grid Paver - EGA20-8 (8.4' x 21.4' x 8")
EnviroGrid Geocell Ground Grid Paver - EGA20-8 (8.4' x 21.4' x 8")
EnviroGrid Geocell Ground Grid Paver - EGA20-8 (8.4' x 21.4' x 8")
EnviroGrid Geocell Ground Grid Paver - EGA20-8 (8.4' x 21.4' x 8")
EnviroGrid Geocell Ground Grid Paver - EGA20-8 (8.4' x 21.4' x 8")
EnviroGrid Geocell Ground Grid Paver - EGA20-8 (8.4' x 21.4' x 8")
EnviroGrid Geocell Ground Grid Paver - EGA20-8 (8.4' x 21.4' x 8")
EnviroGrid Geocell Ground Grid Paver - EGA20-8 (8.4' x 21.4' x 8")

EnviroGrid Geocell Ground Grid Paver - EGA20-8 (8.4' x 21.4' x 8")

SKU EGA20-8
$421.98 - $421.98
$421.98
$421.98 - $421.98
$421.98
Free Shipping

EnviroGrid · Geocell Ground Grid · Model EGA20-8

EnviroGrid EGA20-8 is the deepest panel in the EGA20 range at 8". Geo Products positions it for specialty applications where heavy machinery will be frequent — equipment yards, haul routes, staging areas — and specifies it by application rather than publishing a single load rating the way the shallower depths carry. More confinement depth means more load spread and more stormwater volume held in the cells. No gravel base is needed. Each panel opens to 8.4' × 21.4' for 179.76 sq ft, molded in black from 100% virgin HDPE with a 10-year material warranty.

Cell Depth
8"Black, virgin HDPE
Coverage
179.76 sq ft8.4' × 21.4' expanded
Load Rating
8"by application
Warranty
10 Yearmaterial warranty
  • Made in the USA
  • 100% virgin HDPE resin
  • No gravel base required
  • Geotextile underlayment required
  • Free shipping on all orders

Free Shipping - Please submit a Quote Request for quantities larger than listed below.

Quantity Price Per Unit
(Free Shipping)
1 $421.98
2+ $400.88
3+ $379.78
10+ $358.68

01 Ground stabilization

The Deepest Panel, For Heavy Machinery Duty

EnviroGrid EGA20-8 is the deepest panel in the EGA20 range at 8". Geo Products positions it for specialty applications where heavy machinery will be frequent — equipment yards, haul routes, staging areas — and specifies it by application rather than publishing a single load rating the way the shallower depths carry.

More confinement depth means more load spread and more stormwater volume held in the cells. No gravel base is needed. Each panel opens to 8.4' × 21.4' for 179.76 sq ft, moulded in black from 100% virgin HDPE with a 10-year material warranty.

8"cell depth · deepest in the range

Deeper confinement means more load spread and more water held in the cells. Geo Products specifies the 8" by application rather than a single load figure.

02 Confinement

Cut Base Material By Up To Half

By confining the infill, lateral movement away from the applied load is reduced. The grid functions as a large mat, distributing the load over an extended area and spreading out the downward pressure. On a slope it holds infill in place and reduces erosion, and because the material is designed to drain, water flows through while the encased layer stays intact.

Geo Products Spec Sheet

03 Product data

Specifications

ModelEGA20-8
BrandEnviroGrid, by Geo Products
Expanded grid size8.4' × 21.4'
Square footage per grid179.76
Cell depth8"
Cell dimensions (L × W)10.2" × 8.8"
ColorBlack
Load ratingSpecified by application — heavy machinery duty
Best suited forHeavy machinery, specialty use
Material100% virgin HDPE resin
Warranty10-year material warranty
ManufacturingMade in the USA, ISO 9001:2015 certified facility
GeotextileRequired beneath the grid

04 Where it gets used

Applications

Permeable pavements Parking areas Driveways Access roads Fire access lanes Boat ramps Ports & marinas Golf cart paths RV parking Trails & pathways Roadside shoulder reinforcement Pavement base support Permeable paver support
Reduces base material by up to 50%. Confinement also cuts the stress inflicted on the subgrade when a load is applied, and lowers overall installation cost through the reduction in rock required.

05 What you don't need

No Gravel Base Required

EnviroGrid does not require a gravel base. The cell depth and the compaction that takes place inside the confined cells do that work instead. Lay an approved geotextile, set the grid and fill — which saves both labor and material cost.

06 What you do need

Geotextile Fabric Beneath The Grid

A layer of geotextile fabric below the grid is required, to stop the gravel absorbing into the ground while providing adequate strength and drainage. J-hooks and heavy-duty zip ties are also recommended for attaching multiple panels together.

We recommend heavy-duty 6 oz drainage fabric, 6' × 300' beneath the grid.

07 Infill options

Fill With Gravel, Sand, Dirt Or Grass

EnviroGrid takes a range of infill types, so the same grid builds a reinforced grass driveway, a strong gravel surface, or a dirt area that resists erosion.

Gravel

Aggregate paving

  • Driveways and parking
  • Access roads
  • Fire access lanes
  • RV and boat parking

Grass

Vegetated

  • Reinforced grass driveways
  • Green parking spaces
  • Overflow parking

Sand or dirt

Erosion resistant

  • Slope stabilization
  • Trails and pathways
  • Areas prone to washout

Base support

Beneath pavement

  • Pavement base support
  • Permeable paver support
  • Base reduction

08 Choosing a depth

Which Depth Cell Do I Need?

All four depths share the same 8.4' × 21.4' grid, 179.76 sq ft coverage and 10.2" × 8.8" cells. Cell depth is what sets the load capacity.

Property EGA20-3 EGA20-4 EGA20-6 EGA20-8
Cell depth3"4"6"8"
Load rating~8,000 lbs40,000 lbs60,000 lbsBy application
Best suited forCars, golf carts, ATVsMost driveways & parking lotsEmergency access, heavy vehiclesHeavy machinery, specialty use
Stormwater storage. EGA20-6 infilled with #57 stone under a 1" wearing layer can provide 2.8" of rainwater storage. Geo Products does not publish a single load figure for the 8" — it is specified by application, so check the spec sheet or ask us.

09 How it works

How EnviroGrid Works

A quick overview covering how the EnviroGrid system works and its advantages for ground stabilization applications — worth three minutes before you order, particularly if you have not installed geocell before.

10 Installation

Installation Overview

The sequence runs to five stages, with no gravel base course required at any point. The full guide covers base preparation, layout and infill in detail.

  1. Prepare the subgrade. Grade to the finished profile and compact. No gravel base course is required.
  2. Lay the geotextile. Required across the full area beneath the grid, to stop infill absorbing into the soil.
  3. Expand and position the panel. Each opens to 8.4' × 21.4', covering 179.76 sq ft.
  4. Join and anchor. EnviroLock zip ties link panel to panel; J-hooks hold the assembly against the subgrade.

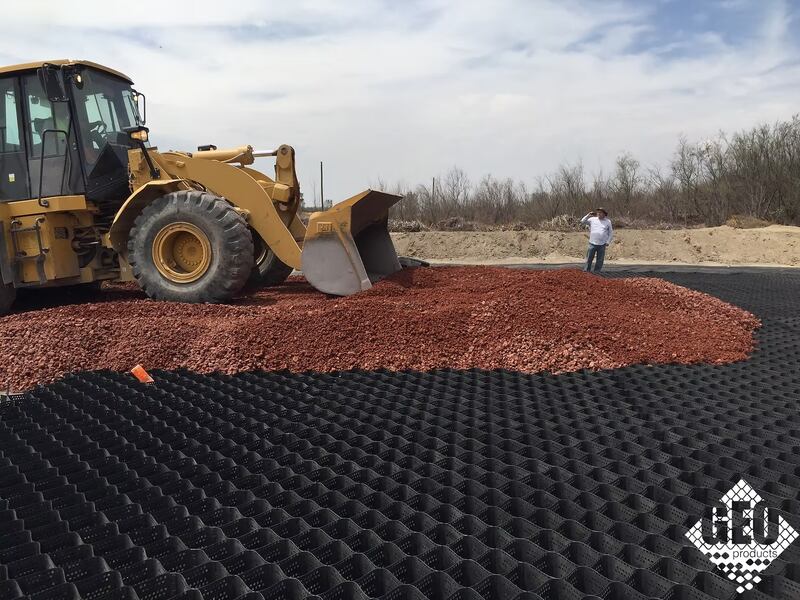

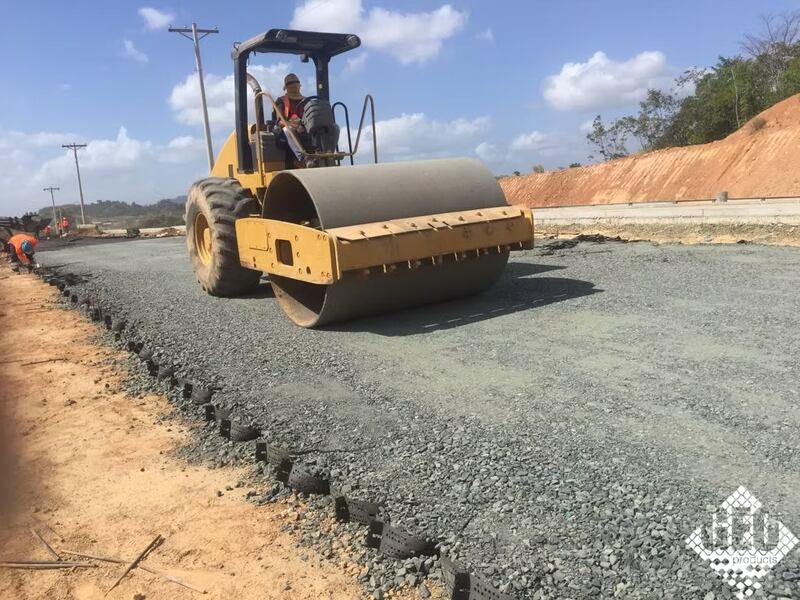

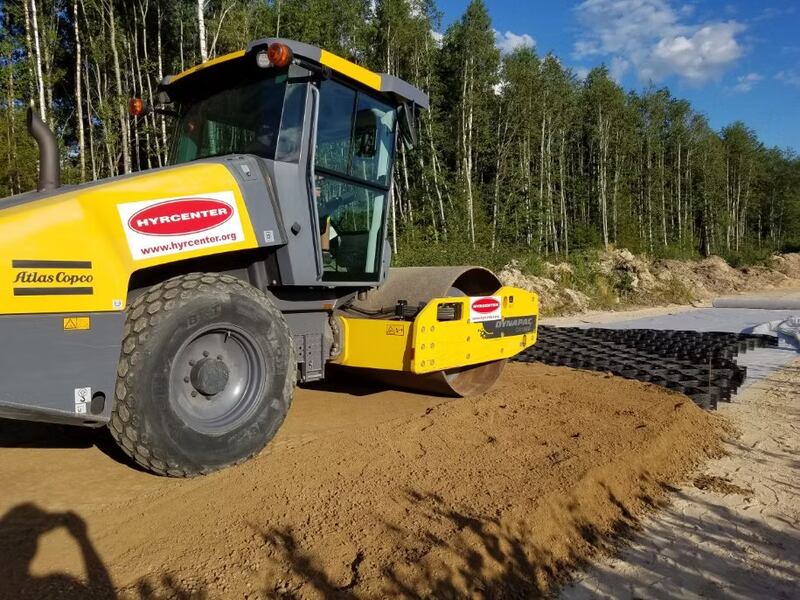

  5. Fill and compact. Gravel, sand, dirt or grass, screeded level with the top of the cells.

Installation Guide (PDF) Spec Sheet

EnviroGrid EGA20-8 geocell grid expanded and ready for infill
EGA20-8 expanded and ready for infill.

11 Why specify it

Structural And Environmental Benefits

Structural benefits

  • Reduces the amount of base material by up to 50%.
  • Reduces the stress inflicted on the subgrade when a load is applied.
  • Reduces overall installation cost through the reduction in rock required.
  • Holds infill in place on slopes and reduces erosion.

Environmental benefits

  • Reduce stormwater runoff.
  • Natural recharging of groundwater.
  • Captures airborne pollutants.
  • Safely distributes car oil leakage.
  • Reduce hot surface temperatures.

Earn LEED building credits

  • Reduced site disturbance
  • Heat island effect
  • Recycled material content
  • Stormwater management

12 Who makes it

Made In The USA By Geo Products

ISO 9001:2015 certified

The Geo Products manufacturing facility is ISO 9001:2015 certified by NSF, with all products undergoing stringent testing on-site at the facility.

100% virgin HDPE resin

All EnviroGrid products are manufactured with 100% virgin HDPE resins rather than regrind or recycled stock.

10-year material warranty

Every EnviroGrid product carries a ten-year material warranty from the manufacturer.

Manufactured in the USA

EnviroGrid is produced in the United States, not imported and rebadged.

13 Free shipping, every order

EnviroGrid Shipping Time:

Shipping is free on every order, with no minimum. Transit times displayed in the map are listed in business days, are approximate, and are for standard ground shipping. The day that the order is shipped is not counted as a transit day.

Ground grid shipping transit time map of the United States in business days

14 Buying from us

Why Buy Geocells From Landscape Discount

Professional-grade geocells only

Everything we stock comes from established US-based manufacturers and is ASTM tested to meet specific technical guidelines.

No off-brand geocells

We only sell geocells made by manufacturers with proven long-term track records and a solid reputation for standing behind their product.

You get the geocells you ordered

We never substitute another brand or geocell type without your explicit consent.

We answer the phone

When you call you quickly reach a helpful, live person happy to answer your product and order questions. (M-F 5:00 am - 3:00 pm Pacific Time)

15 Fabric and anchors

EnviroGrid Accessories

A geotextile layer beneath the grid is required on every install. The expanded grid then has to be held in position and the panels joined to each other, or the cells shift and the assembly creeps out of line.

Heavy duty 6 oz nonwoven drainage filter fabric roll

Heavy-Duty Drainage Fabric

FNW606300

Required underlayment

6 oz nonwoven, 6' × 300'. Goes down before the grid to stop infill absorbing into the soil, while still draining freely.

View FNW606300
EnviroGrid 18 inch rebar J hook anchor

Rebar J-Hooks — 18"

EJHR-18

EnviroGrid only

Holds the expanded grid down against the subgrade so it stays in position while the infill goes in and gets compacted.

View EJHR-18
EnviroGrid 24 inch rebar J hook anchor

Rebar J-Hooks — 24"

EJHR-24

EnviroGrid only

The longer hook, for the deeper 6" and 8" cells and for softer subgrades where an 18" hook won't get enough bite.

View EJHR-24
EnviroLock heavy duty zip ties for joining EnviroGrid panels

EnviroLock Zip Ties

ENV-175

Heavy-duty ties for joining panel to panel. The fastest way to link multiple grids into one continuous mat.

View EnviroLock

16 Related options

Other Depths

EnviroGrid geocell ground grid EGA20-3

3" deep — EGA20-3

Cars, golf carts, ATVs

View EGA20-3
EnviroGrid geocell ground grid EGA20-4

4" deep — EGA20-4

Most driveways & parking lots

View EGA20-4
EnviroGrid geocell ground grid EGA20-6

6" deep — EGA20-6

Emergency access, heavy vehicles

View EGA20-6

17 Common questions

Frequently Asked Questions

How many grids do I need?
Each expanded grid is 8.4' × 21.4' and covers 179.76 square feet. Divide your total area by 179.76 for grid count, then add for cuts and waste around curves and edges.
Which depth should I choose?
The 8" is the deepest panel, suited to specialty applications where heavy machinery will be frequent. Geo Products specifies it by application rather than publishing a single load figure. The comparison table above sets out all four depths side by side.
Do I really not need a gravel base?
Correct. EnviroGrid does not require a gravel base, because of the cell depth and the compaction that takes place inside the confined cells. You do still need a geotextile layer beneath the grid.
Is the geotextile fabric optional?
No, it is required. Without it the gravel absorbs into the ground below and the system loses its confinement. We recommend the heavy-duty 6 oz nonwoven drainage fabric at 6' × 300'.
How do I join panels together?
J-hooks or EnviroLock heavy-duty zip ties. The zip ties are the quickest way to link panel to panel into one continuous mat; the J-hooks anchor the assembly down to the subgrade.
What can I fill the cells with?
Gravel, sand, dirt or grass. The same grid builds a reinforced grass driveway, a strong gravel surface, or a dirt area that resists erosion, and it also works as base support beneath pavement.
Will the J-hooks from the LSG grid fit?
No. EnviroGrid uses its own hooks, EJHR-18 and EJHR-24. The JHR18 and JHR24 hooks are for the Cell-Tek LSG series only.
How does EnviroGrid compare to the Cell-Tek LSG grid?
Both are HDPE geocell load-support grids used the same way. EnviroGrid panels are 8.4' × 21.4' in black, come in four depths up to 8", and carry a 10-year material warranty. The LSG panels are 8' × 22.5' in green and come in three depths up to 6". Coverage per grid is almost identical, so it usually comes down to depth needed, colour and price.
Is it made in the USA?
Yes. EnviroGrid is manufactured in the USA by Geo Products, in an ISO 9001:2015 certified facility, from 100% virgin HDPE resin.
What does shipping cost?
Nothing — shipping is free on all orders. See the transit map above for approximate ground delivery times.

18 Larger projects

Pricing A Large Area?

Volume pricing is available on orders over $7,000. Tell us the square footage you need and we'll come back with a written quote. Shipping stays free at every quantity.
